Torch End

CATALOGUE

Torch end quick action coupling units are designed to be fitted to the hose, the coupling pin is attached to the torch handle or attached safety device. This allows for connection and disconnection of the torch handle from the hose without the use of spanners. The coupling unit and pin meet ISO 7289 and the double 'O' ring design ensures no leakage. It is important to note that the quick action coupling units offer no protection against flashbacks. Flashback arrestors should be fitted in oxygen/fuel gas applications.

Hose Barb Inlet - Header Card (Model: DKT)

Gallery

These torch end quick action coupling units are supplied complete with both the coupling unit and a D1 style coupling pin as detailed in the table below.

Product CodeDescriptionPrice

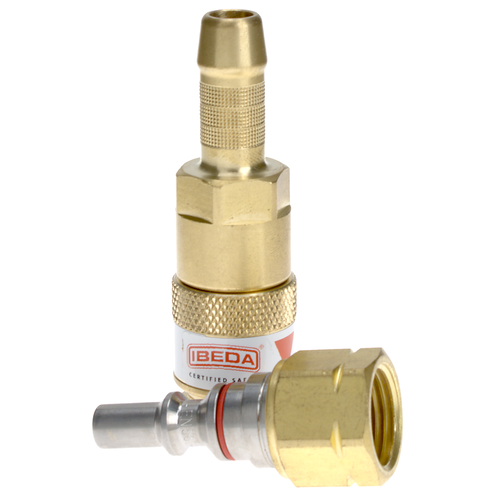

QFDT1F5
QFDT1F5 Quick Action Coupler Fuel Gas
EN561 Torch End 10mm Tail
With 5/8 UNF FM Pin
Login

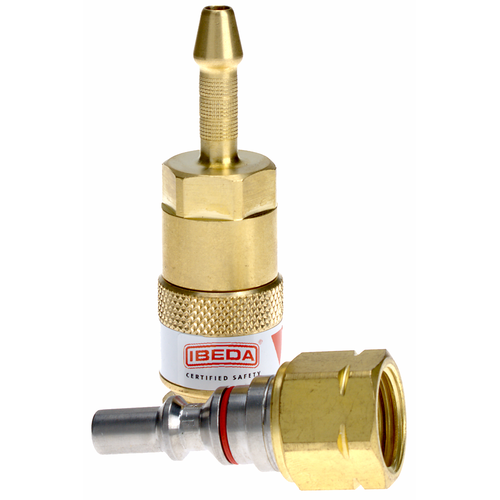

QFDT5F5
QFDT5F5 Quick Action Coupler Fuel Gas
EN561 Torch End 5mm Tail
With 5/8 UNF FM Pin
Login

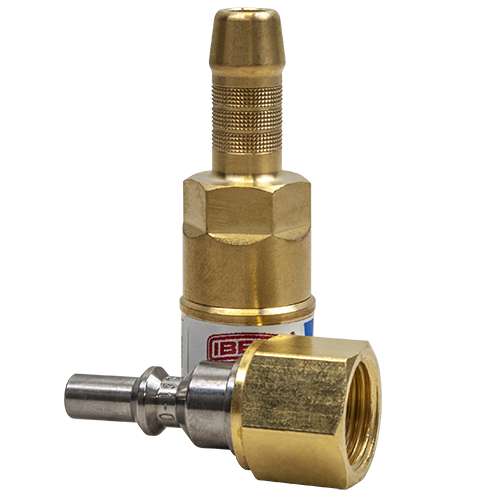

QODT1F5
QODT1F5 Quick Action Coupler Oxygen
EN561 Torch End 10mm Tail
With 5/8 UNF FM Pin
Login
QODT5F5
QODT5F5 Quick Action Coupler Oxygen
EN561 Torch End
With 5/8 UNF FM Pin
Login

Male Hose Connection Inlet - Header Card (Model: DKG)

Gallery

These torch end quick action coupling units are supplied complete with both the coupling unit and a D1 style coupling pin as detailed in the table below.

Product CodeDescriptionPrice

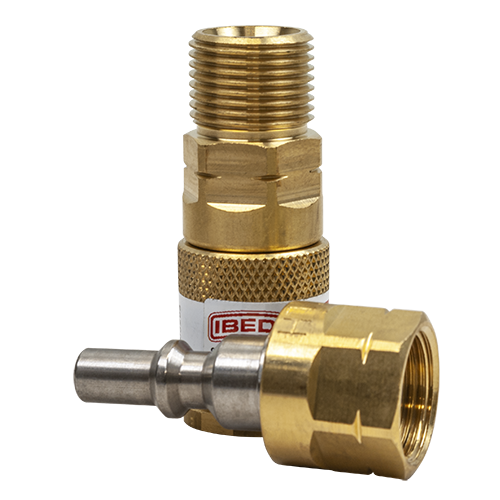

QFDM3F3
QFDM3F3 Quick Action Coupler Fuel Gas
EN561 Torch End G3/8" M
With G3/8" FM Pin
Login

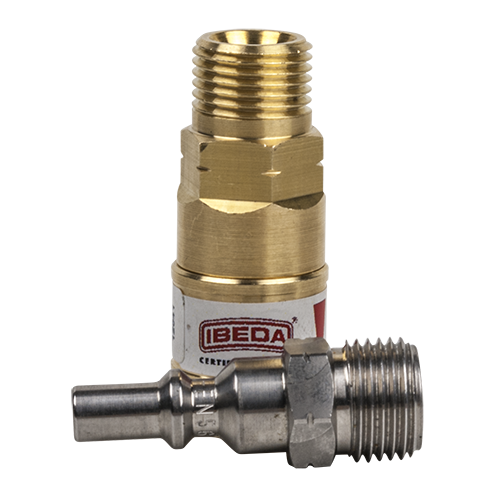

QFDM3M3 Quick Action Coupler Fuel Gas
EN561 Hose Joiner G3/8" M
With G3/8" M Pin
Login

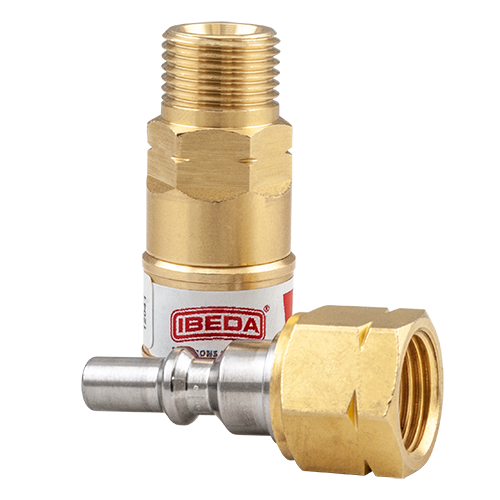

QFDM5F5
QFDM5F5 Quick Action Coupler Fuel Gas
EN561 Torch End 5/8 UNF M
With 5/8 UNF FM Pin
Login

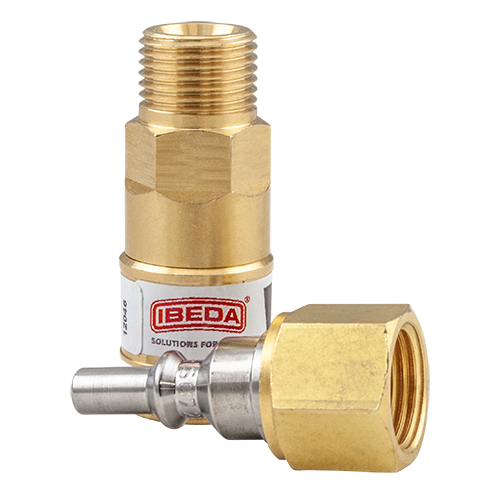

QIDM5F5
QIDM5F5 Quick Action Coupler Inert Gas
EN561 Torch End 5/8 UNF M
With 5/8 UNF FM Pin
Login

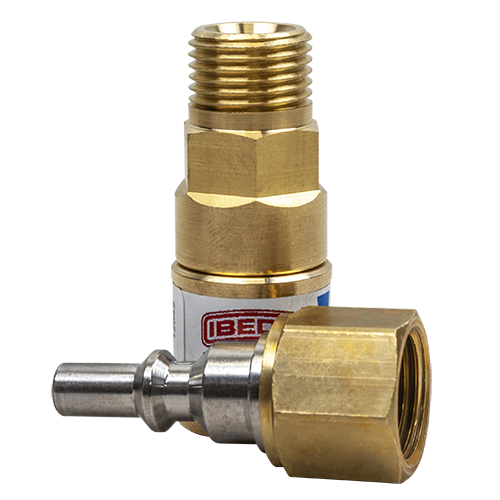

QODM5F5
QODM5F5 Quick Action Coupler Oxygen
EN561 Torch End 5/8 UNF M
With 5/8 UNF FM Pin
Login
