Regulator End

CATALOGUE

Regulator end quick action coupling units are designed to be fitted to the outlet of a regulator or attached safety device, the coupling pin is attached to the hose. This allows for connection and disconnection of the hose from the regulator without the use of spanners. The coupling unit and pin meet EN 561 and the double 'O' ring design ensures no leakage. It is important to note that the quick action coupling units offer no protection against flashbacks. Flashback arrestors must be fitted in oxygen/fuel gas applications.

D2 Style Hose Barb Pin - Header Card (Model: DKD)

Gallery

These regulator end quick action coupling units are supplied complete with both the coupling unit and a D2 style coupling pin detailed in the table below.

Product CodeDescriptionPrice
QFDF5T1

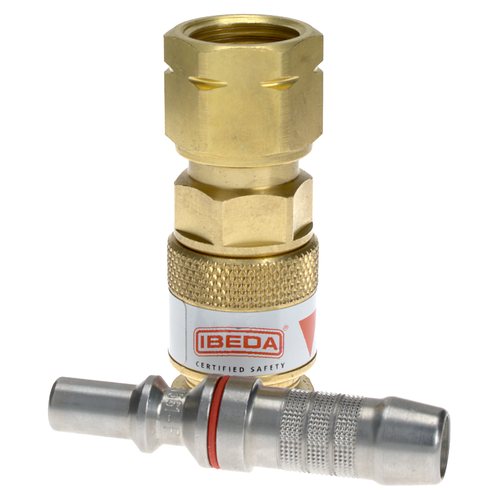

QFDF5T1 Quick Action Coupler Fuel Gas
EN561 Regulator End 5/8 UNF FM
With 10mm Tail Pin
Login

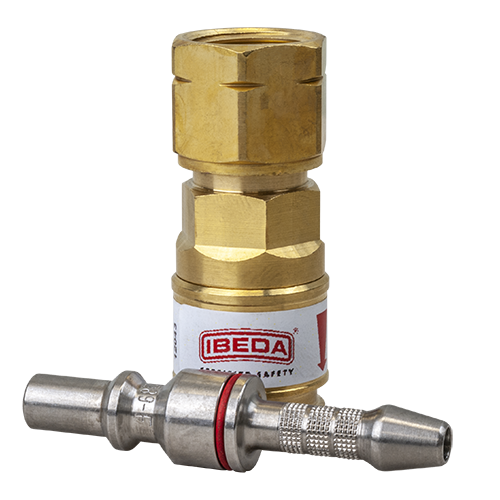

QFDF5T5
QFDF5T5 Quick Action Coupler Fuel Gas
EN561 Regulator End 5/8 UNF FM
With 5mm Tail Pin
Login

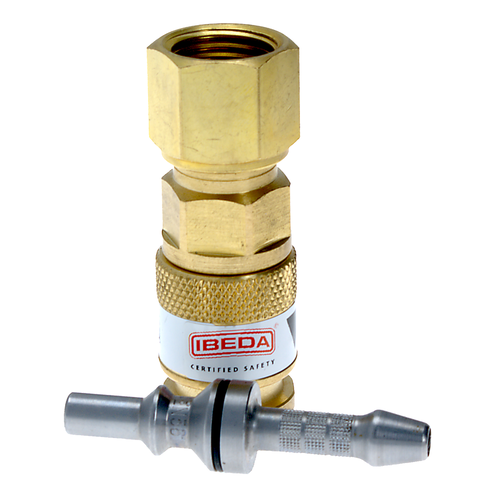

QIDF5T5
QIDF5T5 Quick Action Coupler Inert Gas
EN561 Regulator End 5/8 UNF FM
With 5mm Tail Pin
Login

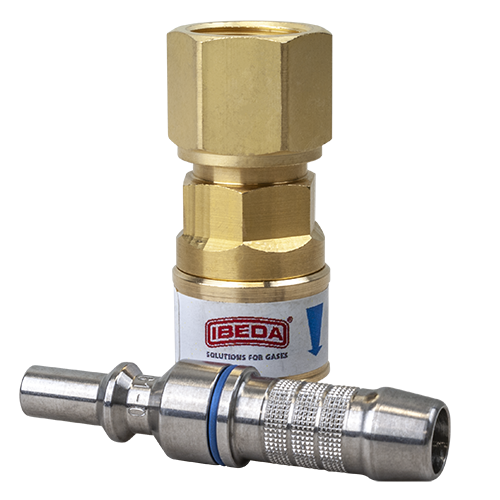

QODF5T1
QODF5T1 Quick Action Coupler Oxygen
EN561 Regulator End 5/8 UNF FM
With 10mm Tail Pin
Login

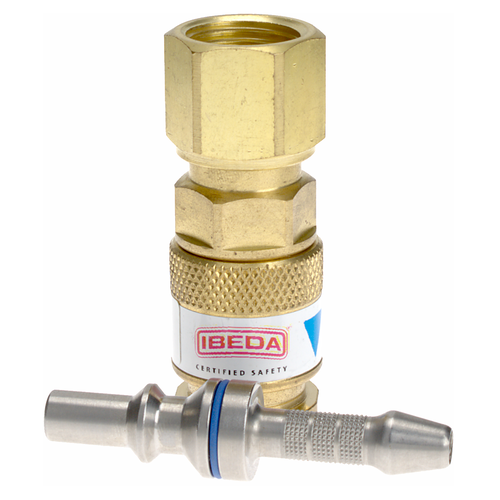

QODF5T5
QODF5T5 Quick Action Coupler Oxygen
EN561 Regulator End 5/8 UNF FM
With 5mm Tail Pin
Login
QPIDF1 Coupling Pin Inert Gas
EN561 G1/4" FM
Login

D4 Style Male Hose Connection Pin - Header Card (Model: DKD)

Gallery

These regulator end quick action coupling units are supplied complete with both the coupling unit and a D4 style coupling pin detailed in the table below.

Product CodeDescriptionPrice

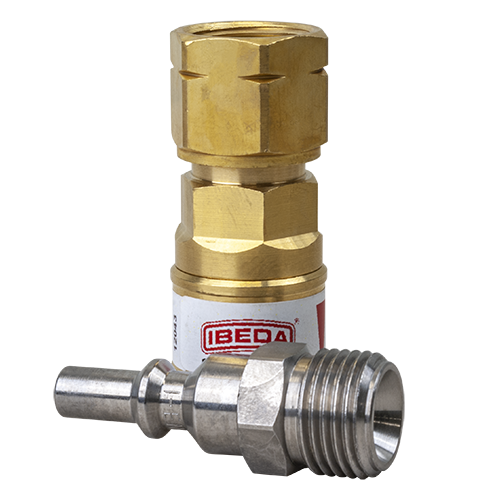

QFDF3M3
QFDF3M3 Quick Action Coupler Fuel Gas
EN561 Regulator End G3/8" FM
With G3/8" M Pin
Login

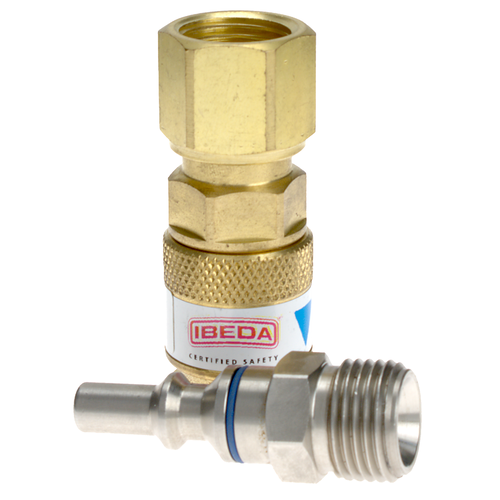

QFDF5M5
QFDF5M5 Quick Action Coupler Fuel Gas
EN561 Regulator End 5/8 UNF FM
With 5/8 UNF M Pin
Login

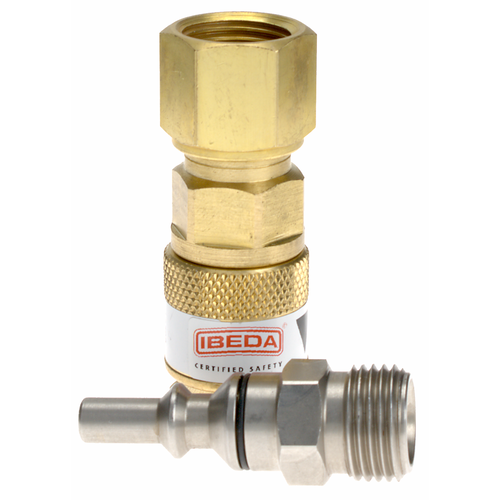

QIDF5M5
QIDF5M5 Quick Action Coupler Inert Gas
EN561 Regulator End 5/8 UNF FM
With 5/8 UNF M Pin
Login

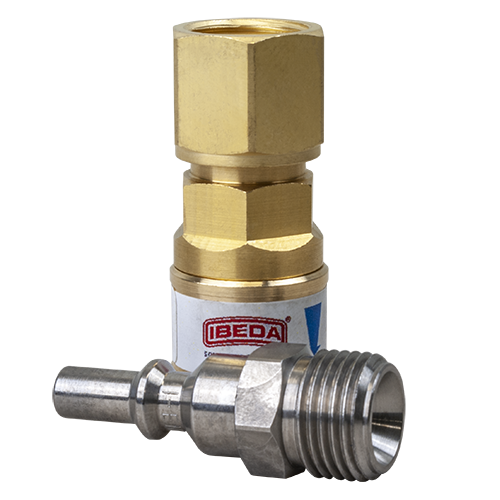

QODF5M5
QODF5M5 Quick Action Coupler Oxygen
EN561 Regulator End 5/8 UNF FM
With 5/8 UNF M Pin
Login
