Regulator End

CATALOGUE

Regulator end flashback arrestors are safety devices fitted to the outlet of a regulator. They incorporate a number of features designed to protect upstream equipment from damage in the event of a flashback or sustained burn back. Of importance, all regulator end models incorporate a thermal cut-off valve as a failsafe, to shut off the flow of gas, eliminating the fire.

Standard Flow - Boxed (Model: DGN)

Gallery

The DGN model flashback arrestor is suitable for the majority of oxygen / fuel gas welding, brazing and cutting processes.

Product CodeDescriptionPrice

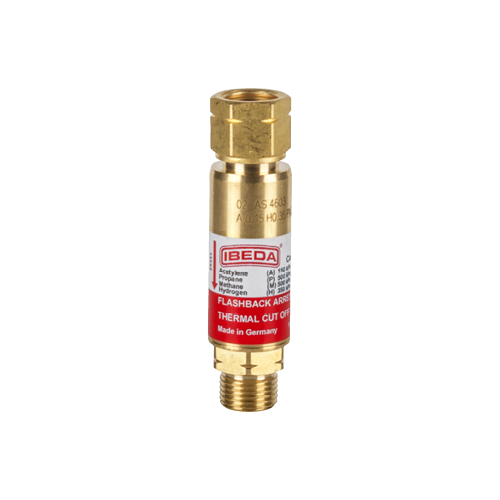

FRSF
FRSF Flashback Arrestor Fuel Gas
Standard Flow Regulator End
5/8-18 UNF
Login
FRSF3 Flashback Arrestor Fuel Gas
Standard Flow Regulator End
G3/8"
Login

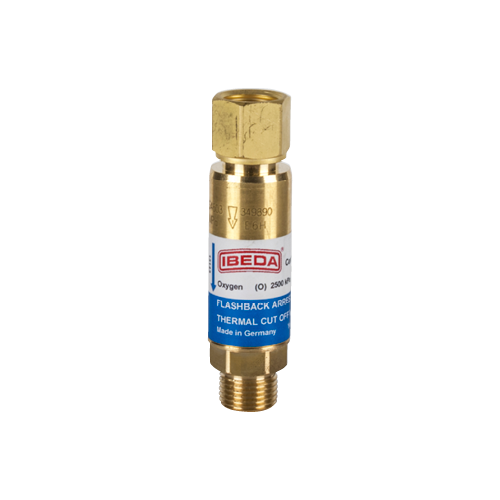

FRSO
FRSO Flashback Arrestor Oxygen
Standard Flow Regulator End
5/8-18 UNF
Login
FRSO3 Flashback Arrestor Oxygen
Standard Flow Regulator End
G3/8"
Login
FRSO4 Flashback Arrestor Oxygen
Standard Flow Regulator End
G1/4"
Login

Standard Flow - Display Pack (Model: DGN)

Gallery

This range of flashback arrestor is identical to the boxed product in the previous table, except that they are presented on a backing board with a clear shrink wrap for a high visibility store display.

Product CodeDescriptionPrice
FRD
FRD Flashback Arrestor Oxygen/Fuel
Standard Flow Regulator End
5/8-18 UNF Twin Display Pac
Login

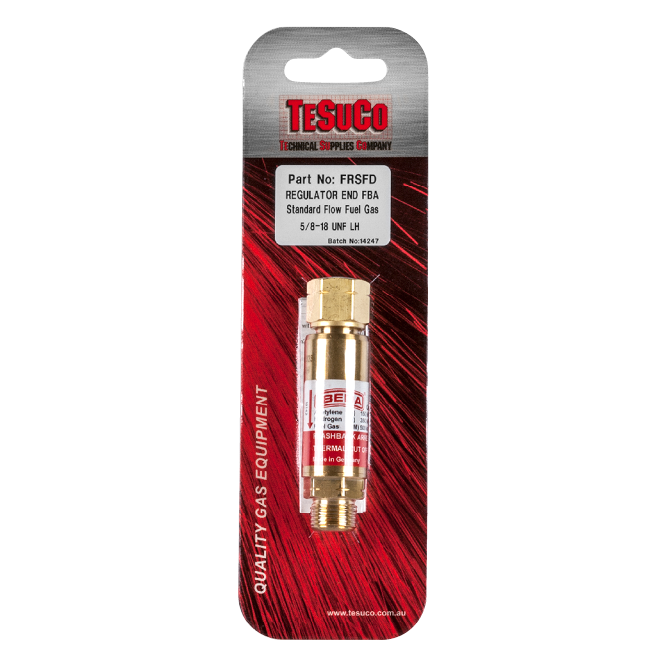

FRSFD
FRSFD Flashback Arrestor Fuel Gas
Standard Flow Regulator End
5/8-18 UNF Display Pack
Login

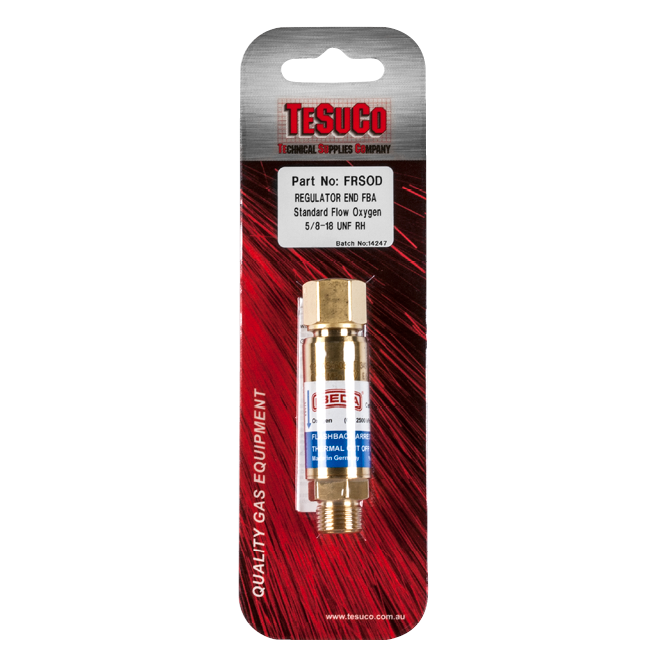

FRSOD
FRSOD Flashback Arrestor Oxygen
Standard Flow Regulator End
5/8-18 UNF Display Pack
Login

Standard Flow Quick Action Coupling - Boxed (Model: DGNDK)

Gallery

The DGNDK model flashback arrestor offers all of the functionality of the DGN standard flow model, with the addition of a quick action coupling and pin. The pin connects to the hose while the flashback arrestor remains on the regulator. The hose can then be connected to the flashback arrestor via the coupling pin. This allows for quick connection and disconnection of the hose without the need for spanners. The coupling and pin meet ISO 7289 and the double 'O' ring design ensures no leakage. Also different coupling pins are available as spare parts for regulator end flashback arrestors.

Product CodeDescriptionPrice

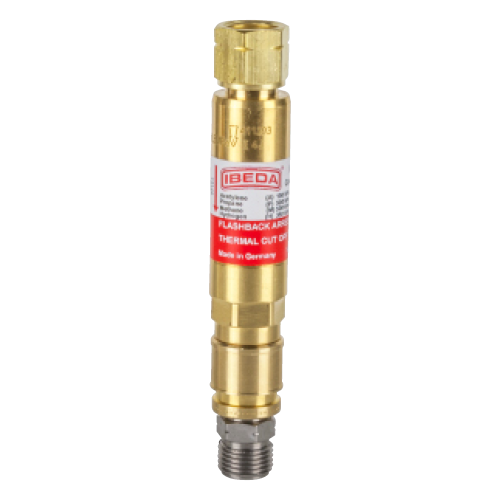

FRSFQD4
FRSFQD4 Flashback Arrestor Fuel Gas
Std Flow Q/A Coupler Reg End
5/8-18 UNF
Login

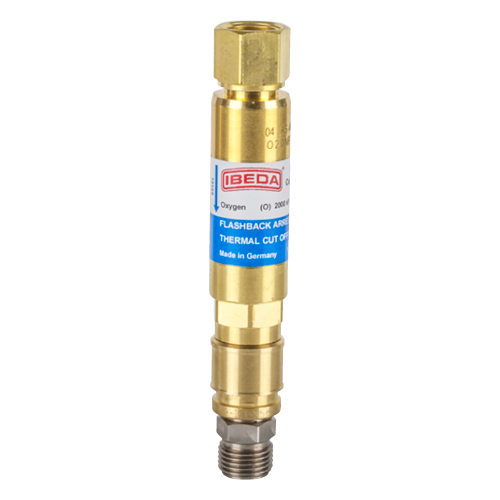

FRSOQD4
FRSOQD4 Flashback Arrestor Oxygen
Std Flow Q/A Coupler Reg End
5/8-18 UNF
Login

Standard Flow Quick Action Coupling - Display Pack (Model: DGNDK)

Gallery

This range of flashback arrestor is identical to the boxed product in the previous table, except that they are presented on a backing board with a clear shrink wrap for a high visibility store display.Also different coupling pins are available as spare parts for regulator end flashback arrestors.

Product CodeDescriptionPrice

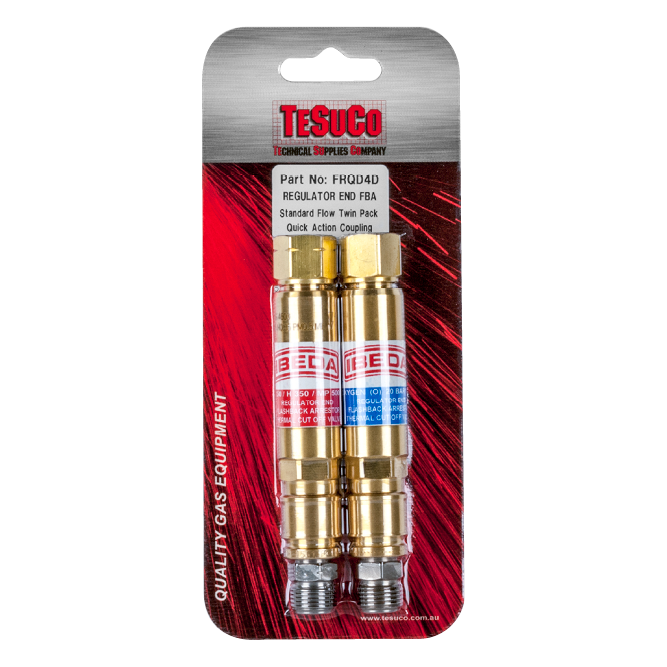

FRQD4D
FRQD4D Flashback Arrestor Oxygen/Fuel
Std Flow Q/A Coupler Reg End
5/8-18 UNF Twin Display Pa
Login

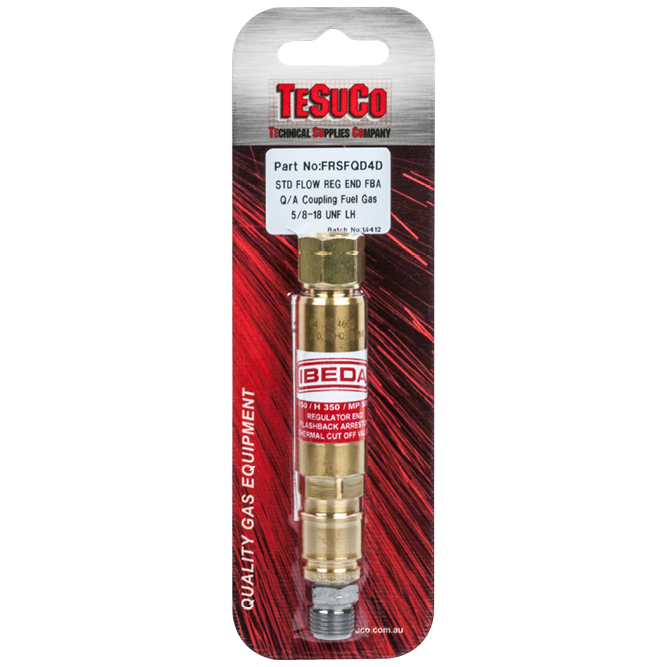

FRSFQD4D
FRSFQD4D Flashback Arrestor Fuel Gas
Std Flow Q/A Coupler Reg End
5/8-18 UNF Display Pack
Login

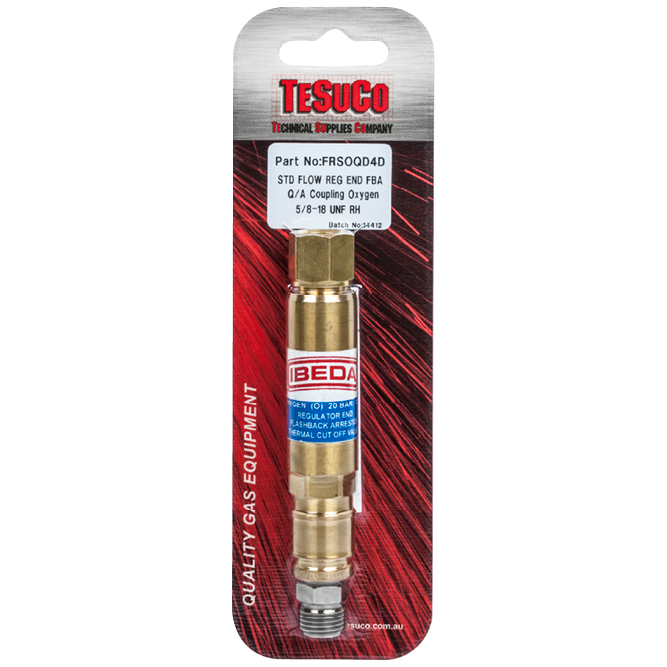

FRSOQD4D
FRSOQD4D Flashback Arrestor Oxygen
Std Flow Q/A Coupler Reg End
5/8-18 UNF Display Pack
Login

High Flow - Boxed (Model: DG91N)

Gallery

The DG91N model flashback arrestor is suitable for applications where a higher flow rate is required for the process being performed; for example, when using larger cutting, heating and gouging nozzles.

Product CodeDescriptionPrice

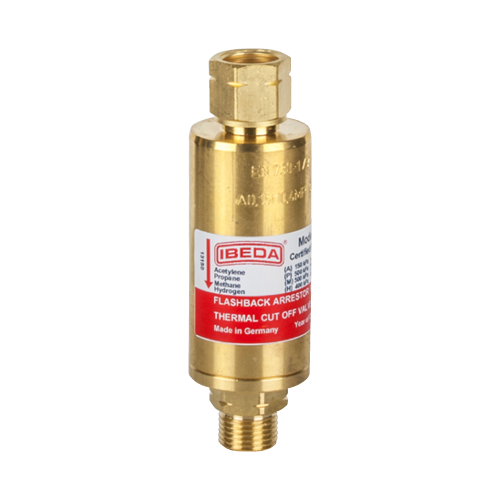

FRHF
FRHF Flashback Arrestor Fuel Gas
High Flow Regulator End
5/8-18 UNF
Login

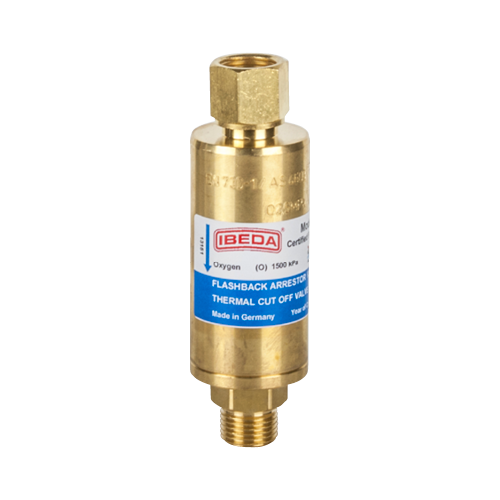

FRHO
FRHO Flashback Arrestor Oxygen
High Flow Regulator End
5/8-18 UNF
Login

High Pressure - Boxed (Model: DG91HN)

The DG91NH model flashback arrestor has been designed for use where a higher fuel gas pressure than is available through the standard range of flashback arrestor is required.

Product CodeDescriptionPrice
FRHH Flashback Arrestor DG91NH RO,5
High Flow Regulator End
5/8-18 UNF A2.5 HCEMP10 OA15
Login

High Flow - Display Pack (Model: DG91N)

Gallery

This range of flashback arrestor is identical to the boxed DG91N model product in the previous table, except that they are presented on a backing board with a clear shrink wrap for a high visibility store display.

Product CodeDescriptionPrice
FRHFD
FRHFD Flashback Arrestor Fuel Gas
High Flow Regulator End
5/8-18 UNF Display Pack
Login
FRHOD
FRHOD Flashback Arrestor Oxygen
High Flow Regulator End
5/8-18 UNF Display Pack
Login

Standard Flow Resettable - Boxed (Model: DS1000)

Gallery

The DS1000 model flashback arrestor offers all of the functionality of the DGN standard flow model, with the additional resettable pressure sensitive cut-off valve feature. When the flashback arrestor is subjected to a pressure wave preceding a flashback, the cut-off valve is activated and stops the flow of gas. Once the equipment has been checked for faults, the device can be reset and normal operation resumed. Suitable for brazing welding and cutting only.

Product CodeDescriptionPrice

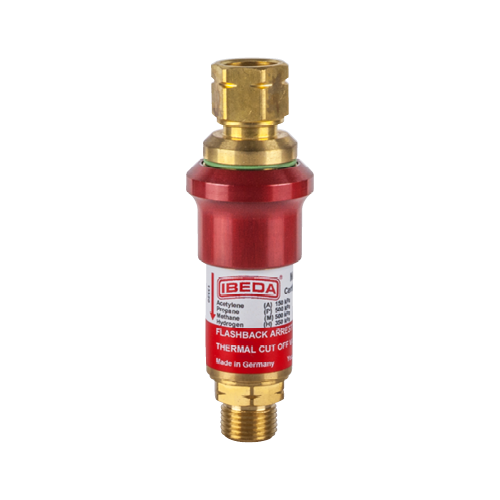

FRSFR
FRSFR Flashback Arrestor Fuel Gas
Standard Flow Regulator End
5/8-18 UNF Resettable
Login

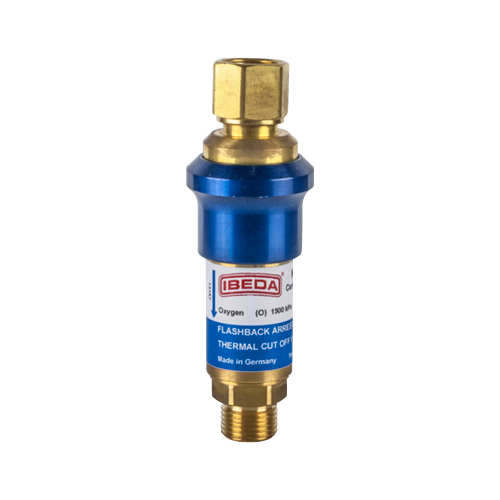

FRSOR
FRSOR Flashback Arrestor Oxygen
Standard Flow Regulator End
5/8-18 UNF Resettable
Login

High Flow Resettable - Boxed (Model: DS2000)

Gallery

The DS2000 model flashback arrestor offers all of the functionality of the DG91N high flow model, with the additional resettable pressure sensitive cut-off valve feature. When the flashback arrestor is subjected to a pressure wave preceding a flashback, the cut-off valve is activated and stops the flow of gas. Once the equipment has been checked for faults, the device can be reset and normal operation resumed. Suitable for heating, gouging where high flowrates are required.

Product CodeDescriptionPrice

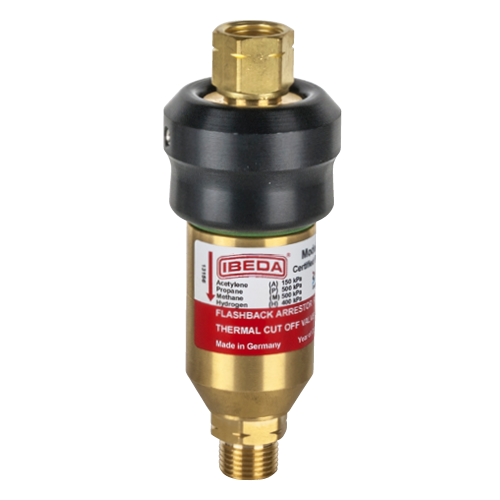

FRHFR
FRHFR Flashback Arrestor Fuel Gas
High Flow Regulator End
5/8-18 UNF Resettable
Login

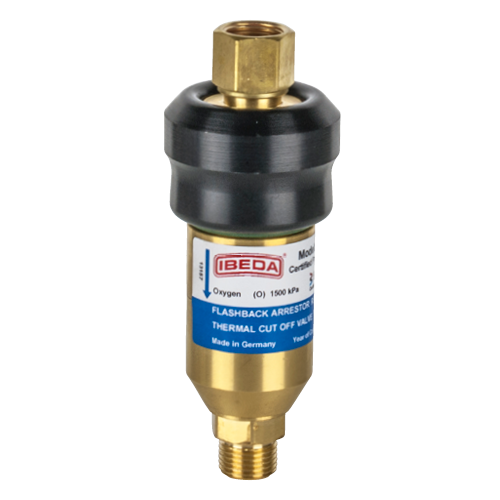

FRHOR
FRHOR Flashback Arrestor Oxygen
High Flow Regulator End
5/8-18 UNF Resettable
Login
FRHOR9 Flashback Arrestor Oxygen
High Flow Regulator End
9/16-18 UNF Resettable
Login
