Torch End

CATALOGUE

Torch end flashback arrestors are safety devices fitted to the inlet of a torch handle or blowpipe. They incorporate a number of features designed to protect upstream equipment from damage in the event of a flashback.

Standard Flow - Boxed (Model: GG)

Gallery

The GG model flashback arrestor is suitable for the majority of oxygen / fuel gas welding brazing and cutting processes.

Product CodeDescriptionPrice

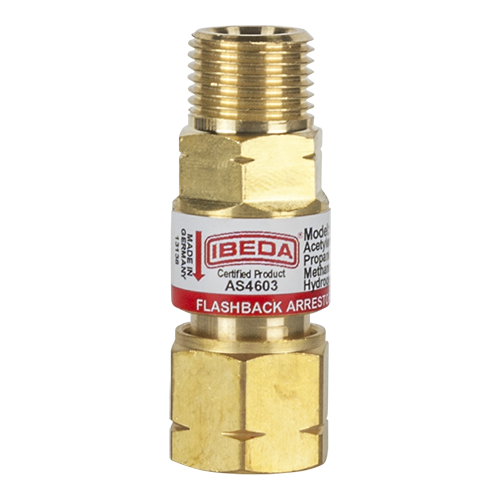

FTSF
FTSF Flashback Arrestor Fuel Gas
Standard Flow Torch End
5/8-18 UNF
Login

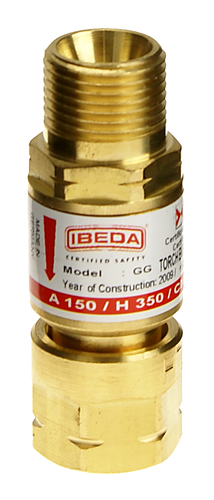

FTSF3
FTSF3 Flashback Arrestor Fuel Gas
Standard Flow Torch End
G3/8"
Login

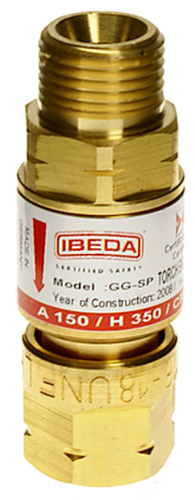

FTSFH
FTSFH Flashback Arrestor Fuel Gas
Standard Flow Torch End
5/8-18 UNF - 9/16-18 UNF
Login

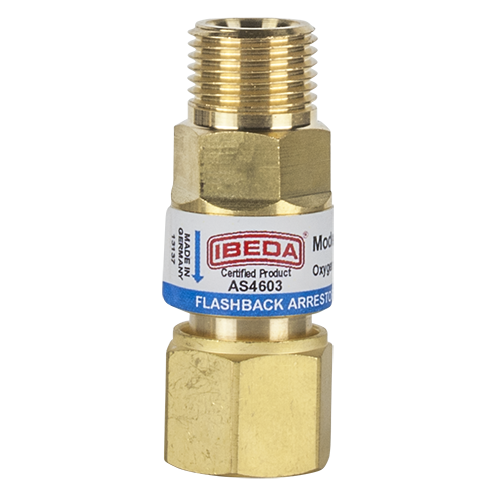

FTSO
FTSO Flashback Arrestor Oxygen
Standard Flow Torch End
5/8-18 UNF
Login

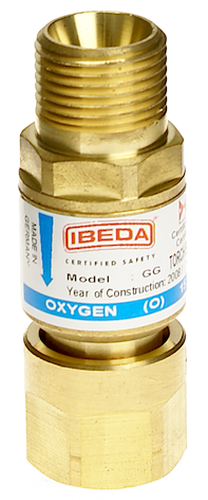

FTSO3
FTSO3 Flashback Arrestor Oxygen
Standard Flow Torch End
G3/8"
Login

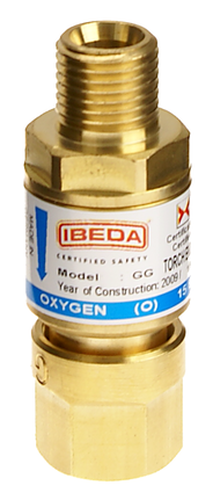

FTSO4
FTSO4 Flashback Arrestor Oxygen
Standard Flow Torch End
G1/4"
Login

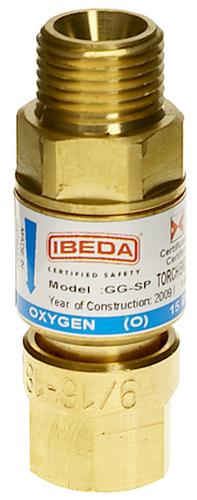

FTSOH
FTSOH Flashback Arrestor Oxygen
Standard Flow Torch End
5/8-18 UNF - 9/16-18 UNF
Login

Standard Flow - Display Pack (Model: GG)

Gallery

This range of flashback arrestor is identical to the boxed GG model products in the previous table, except that they are presented on a backing board with a clear shrink wrap for a high visibility store display.

Product CodeDescriptionPrice
FTD
FTD Flashback Arrestor Oxygen/Fuel
Standard Flow Torch End
5/8-18 UNF Twin Display Pack
Login

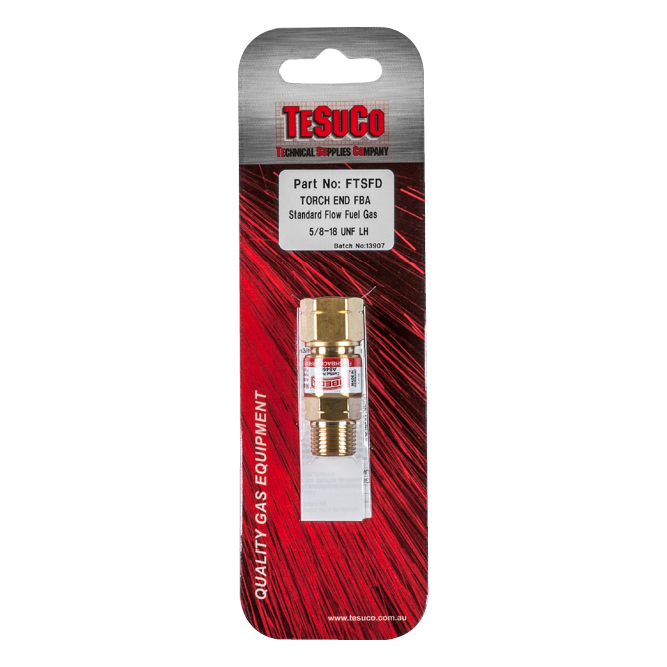

FTSFD
FTSFD Flashback Arrestor Fuel Gas
Standard Flow Torch End
5/8-18 UNF Display Pack
Login

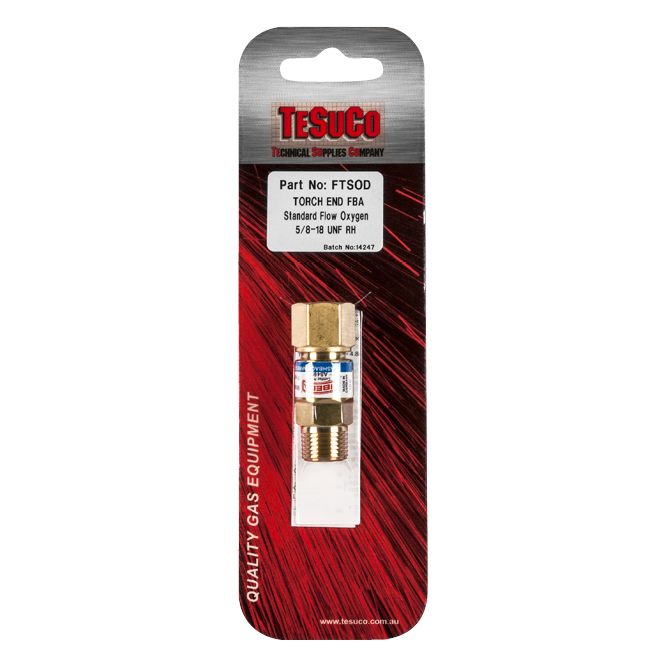

FTSOD
FTSOD Flashback Arrestor Oxygen
Standard Flow Torch End
5/8-18 UNF Display Pack
Login

Standard Flow Quick Action Coupling - Boxed (Model: DKSG)

Gallery

The DKSG model flashback arrestor offers all of the functionality of the GG standard flow model, with the addition of a quick action coupling and pin. The pin connects to the torch handle, while the flashback arrestor component is connected to the hose. The torch can then be connected to the flashback arrestor via the coupling pin. This allows for quick connection and disconnection of the torch without the need for spanners. The coupling and pin meet ISO 7289 and the double 'O' ring design ensures no leakage. Also different coupling pins are available as spare parts for torch end flashback arrestors.

Product CodeDescriptionPrice

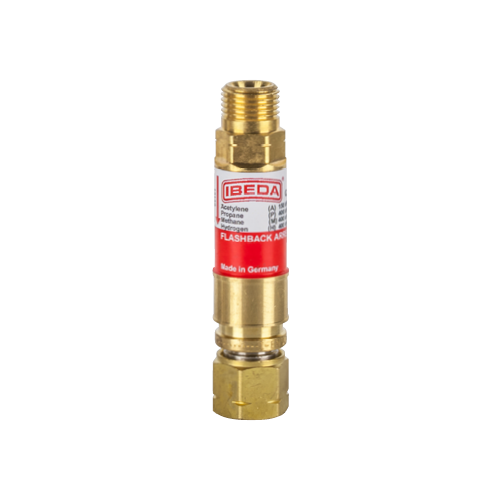

FTSFQD1
FTSFQD1 Flashback Arrestor Fuel Gas
Std Flow Q/A Coupler Torch End
5/8-18 UNF
Login

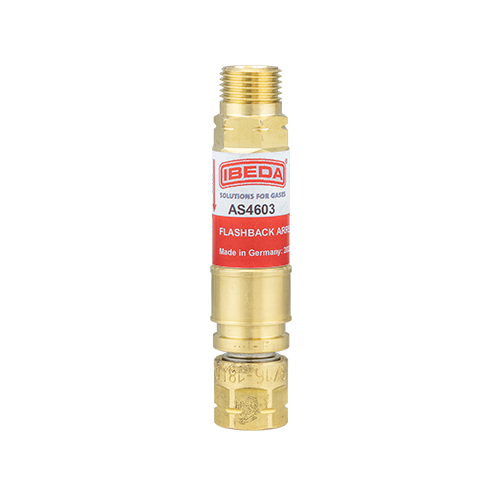

FTSFQD1H Flashback Arrestor Fuel Gas
Std Flow Q/A Coupler Torch End
5/8-18 UNF - 9/16-18 UNF
Login

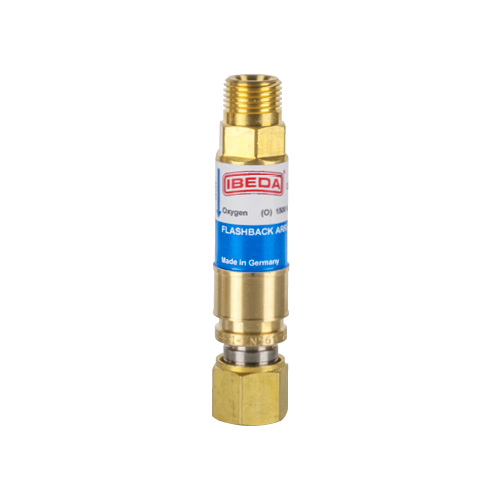

FTSOQD1
FTSOQD1 Flashback Arrestor Oxygen
Std Flow Q/A Coupler Torch End
5/8-18 UNF
Login

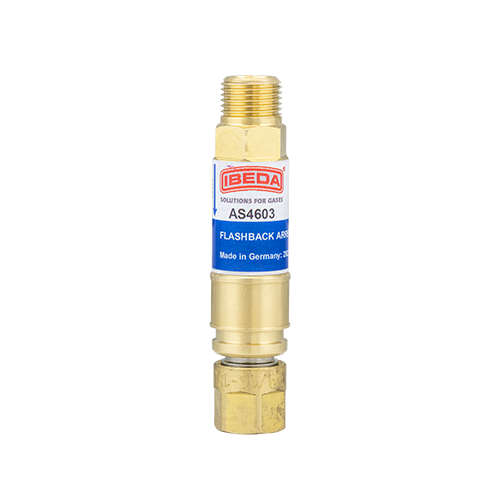

FTSOQD1H Flashback Arrestor Oxygen
Std Flow Q/A Coupler Torch End
5/8-18 UNF - 9/16-18 UNF
Login

Standard Flow Quick Action Coupling - Display Pack (Model: DKSG)

Gallery

This range of flashback arrestor is identical to the boxed GG model products in the previous table, except that they are presented on a backing board with a clear shrink wrap for a high visibility store display. Also different coupling pins are available as spare parts for torch end flashback arrestors.

Product CodeDescriptionPrice

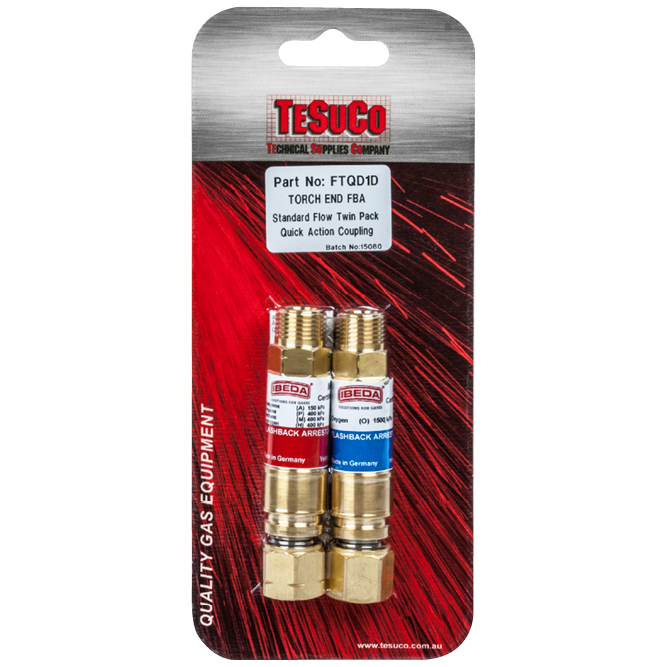

FTQD1D
FTQD1D Flashback Arrestor Oxygen/Fuel
Std Flow Q/A Coupler Torch End
5/8-18 UNF Display Pack
Login

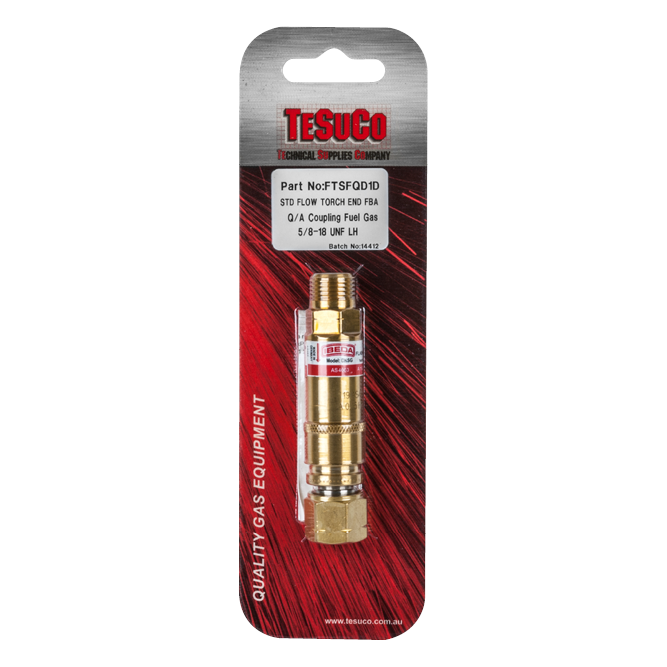

FTSFQD1D
FTSFQD1D Flashback Arrestor Fuel Gas
Std Flow Q/A Coupler Torch End
5/8-18 UNF Display Pack
Login
FTSFQD1HD Flashback Arrestor Fuel Gas
Std Flow Q/A Coupler Torch End
5/8-18 UNF - 9/16 Display P
Login

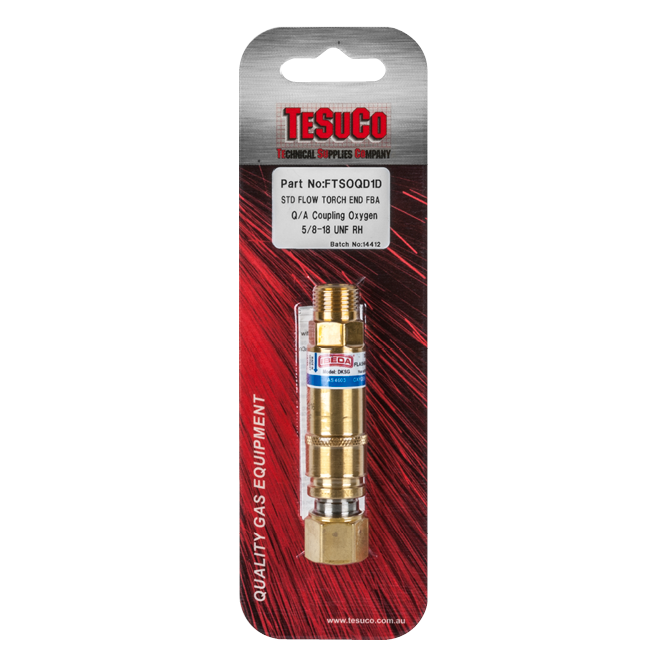

FTSOQD1D Flashback Arrestor Oxygen
Std Flow Q/A Coupler Torch End
5/8-18 UNF Display Pack
Login
FTSOQD1HD Flashback Arrestor Oxygen
Std Flow Q/A Coupler Torch End
5/8-18 UNF - 9/16 Display Pac
Login

Medium Flow - Boxed (Model: DGU)

Gallery

The DGU model flashback arrestor offers a solution where the flow rate required is more than the standard flow model arrestors can provide, but less than that of the high flow models. The major benefit being its compact size and reduced weight compared to the high flow models.

Product CodeDescriptionPrice

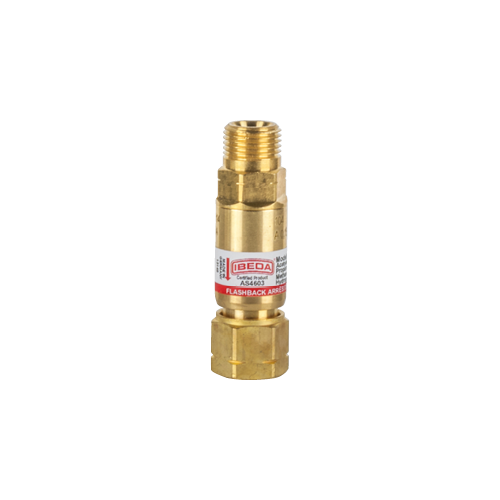

FTMF
FTMF Flashback Arrestor Fuel Gas
Medium Flow Torch End
Login

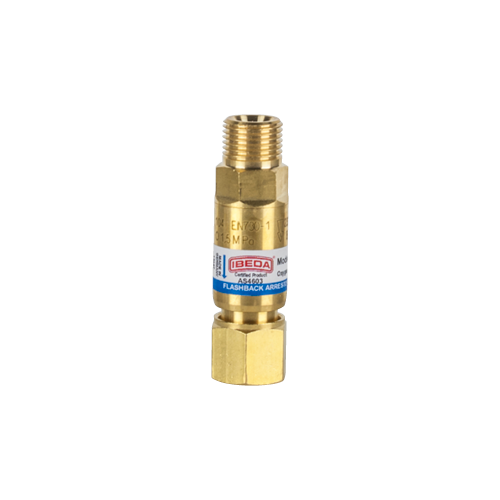

FTMO
FTMO Flashback Arrestor Oxygen
Medium Flow Torch End
5/8-18 UNF
Login

Medium Flow Quick Action Coupling - Display Pack (Model: DGUDK)

The DGUDK model flashback arrestor offers all of the functionality of the DGU medium flow model, with the additional feature of a quick action coupling and pin. The pin connects to the torch handle, while the flashback arrestor component is connected to the hose. The torch can then be connected to the flashback arrestor via the coupling pin. This allows for quick connection and disconnection of the torch without the need for spanners. The coupling and pin meet ISO 7289 and the double 'O' ring design ensures no leakage.

Product CodeDescriptionPrice

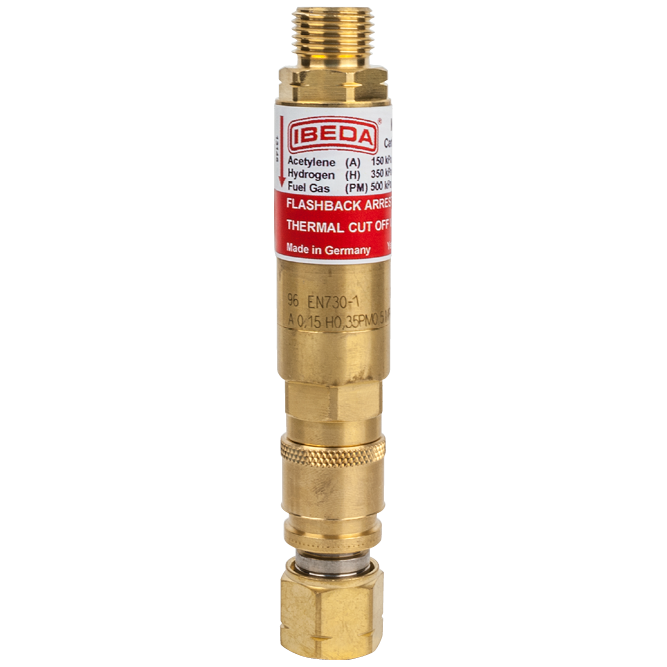

FTMFQD1D Flashback Arrestor Fuel Gas
Med Flow Q/A Coupler Torch End
5/8-18 UNF Display Pack
Login
FTMOQD1D Flashback Arrestor Oxygen
Med Flow Q/A Coupler Torch End
5/8-18 UNF Display Pack
Login

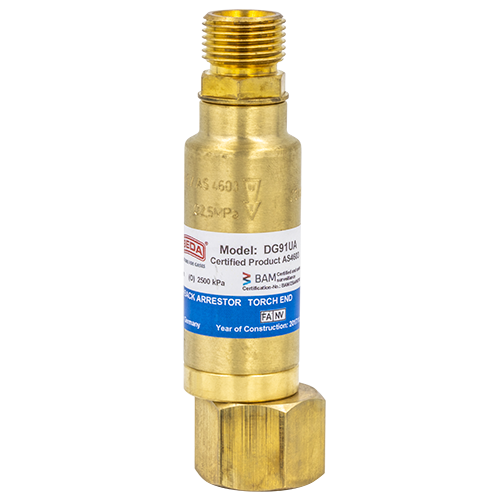

High Flow - Boxed (Model: DG91UA)

Gallery

The DG91UA model flashback arrestor is suitable for applications where a higher flow rate is required for the process being performed: for example, when using larger cutting, heating and gouging nozzles.

Product CodeDescriptionPrice

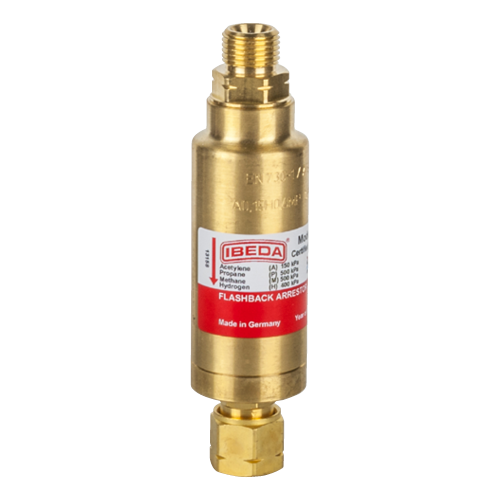

FTHF
FTHF Flashback Arrestor Fuel Gas
High Flow Torch End
5/8-18 UNF
Login
FTHF3 Flashback Arrestor Fuel Gas
High Flow Torch End
G3/8"
Login
FTHFH Flashback Arrestor Fuel Gas
High Flow Torch End
5/8-18 UNF - 9/16-18 UNF
Login

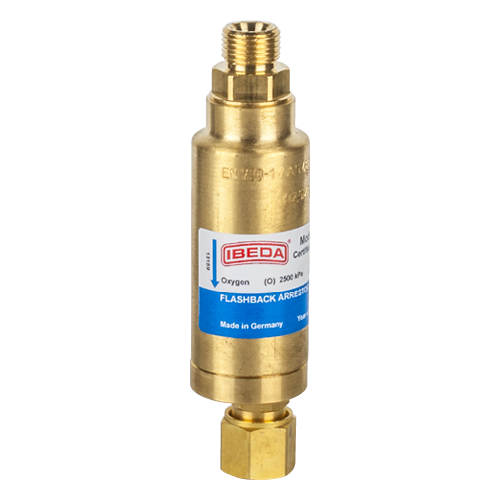

FTHO
FTHO Flashback Arrestor Oxygen
High Flow Torch End
5/8-18 UNF
Login
FTHO2 Flashback Arrestor Oxygen
High Flow Torch End
G1/2"
Login
FTHO3 Flashback Arrestor Oxygen
High Flow Torch End
G3/8"
Login
FTHO5 Flashback Arrestor Oxygen
High Flow Torch End
G5/8"
Login

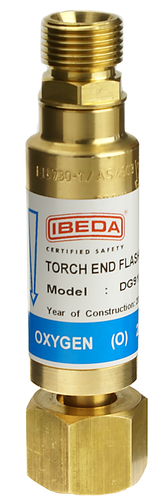

FTHO58
FTHO58 Flashback Arrestor Oxygen
High Flow Torch End
G5/8" - 5/8-18 UNF
Login
FTHOH Flashback Arrestor Oxygen
High Flow Torch End
5/8-18 UNF - 9/16-18 UNF
Login

High Flow - Display Pack (Model: DG91UA)

Gallery

This range of flashback arrestor is identical to the boxed DG91UA model products in the previous table, except that they are presented on a backing board with a clear shrink wrap for a high visibility store display.

Product CodeDescriptionPrice
FTHFD
FTHFD Flashback Arrestor Fuel Gas
High Flow Torch End
5/8-18 UNF Display Pack
Login
FTHOD
FTHOD Flashback Arrestor Oxygen
High Flow Torch End
5/8-18 UNF Display Pack
Login
