It is important to select the correct nozzle for the materials
being used and the work being done. Tesuco has a wide range
of cutting nozzles to ensure you can select the correct nozzle for
the job.

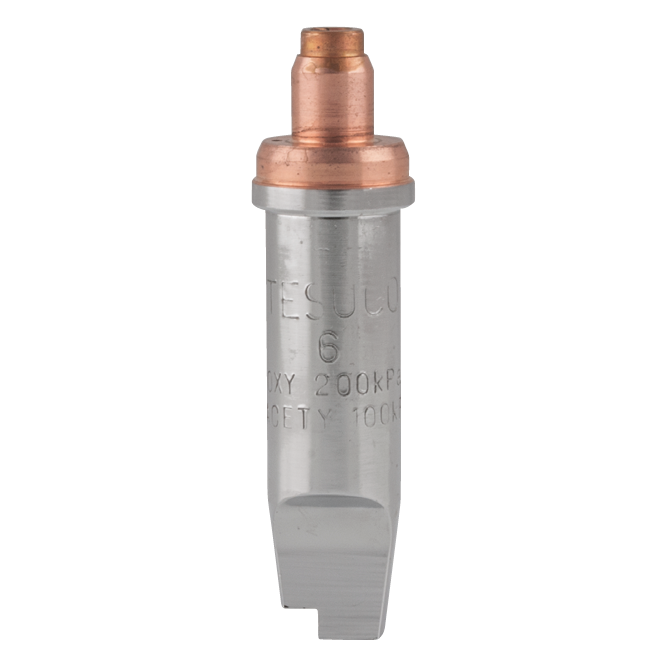

Sheet Metal Nozzle Oxygen / Acetylene - Type 41
|
Gallery
|
Sheet metal cutting nozzles are
specifically designed for cutting very thin mild steel sheet metal.
The size and position of the pre-heat and cutting oxygen holes
ensures minimal distortion to the metal.
| Product Code | Description |
| GWSMNA6 |
Sheet Metal Nozzle Size 6
Oxygen / Acetylene
|
Cutting Nozzles Oxygen / Acetylene - Type 41 (Copper)
|
Gallery
|
Copper oxygen and acetylene cutting
nozzles perform the same as traditional brass ones but have the
advantage of better heat dissipation and less slag adherence.
Nozzles are marked according to the requirements in AS 4839.
| Product Code | Description |

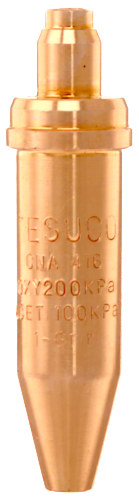

| GWCNA06 |
Cutting Nozzle Size 6
Oxy / Acety Style 41
Cuts 0 - 6 mm
|

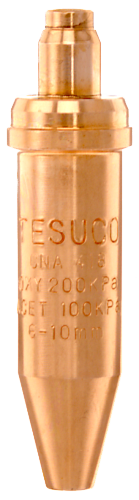

| GWCNA08 |
Cutting Nozzle Size 8
Oxy / Acety Style 41
Cuts 0 - 10 mm
|

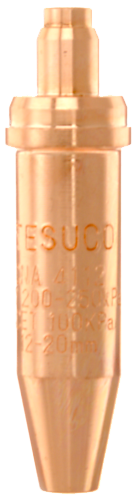

| GWCNA12 |
Cutting Nozzle Size 12
Oxy / Acety Style 41
Cuts 0 - 20 mm
|

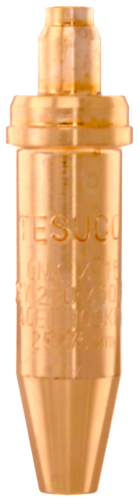

| GWCNA15 |
Cutting Nozzle Size 15
Oxy / Acety Style 41
Cuts 0 - 75 mm
|

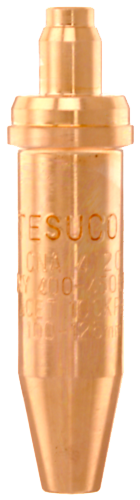

| GWCNA20 |
Cutting Nozzle Size 20
Oxy / Acety Style 41
Cuts 0 - 125 mm
|

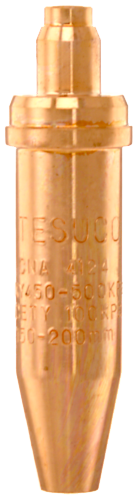

| GWCNA24 |
Cutting Nozzle Size 24
Oxy / Acety Style 41
Cuts 0 - 200 mm
|
| GWCNA32 |
Cutting Nozzle Size 32
Oxy / Acety Style 41
Cuts 0 - 300 mm
|
Cutting Nozzles Oxygen / Acetylene - Type 41 (Brass)
|
Gallery
|
Traditional brass oxygen and acetylene
cutting nozzles are favoured by many users, so Tesuco also offers a
range of nozzles in this material. Nozzles are marked according to
the requirements in AS 4839.
| Product Code | Description |

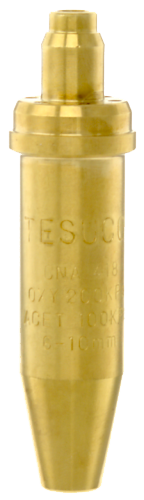

| GWCNA08B |
Cutting Nozzle Size 8
Oxy / Acety Style 41
Brass Cuts 0 - 10 mm
|

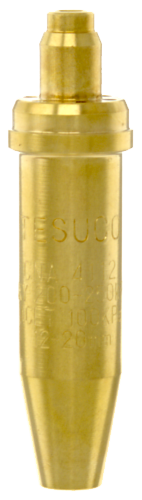

| GWCNA12B |
Cutting Nozzle Size 12
Oxy / Acety Style 41
Brass Cuts 0 - 20 mm
|

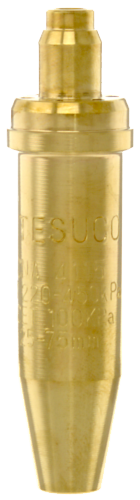

| GWCNA15B |
Cutting Nozzle Size 15
Oxy / Acety Style 41
Brass Cuts 0 - 75 mm
|

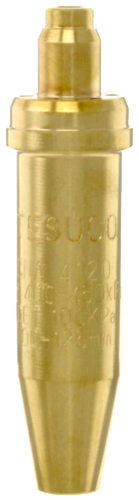

| GWCNA20B |
Cutting Nozzle Size 20
Oxy / Acety Style 41
Brass Cuts 0 - 125 mm
|
Gouging Nozzles Bent Oxygen / Acetylene - Type 41
|
Gallery
|
Gouging nozzles for use with oxygen
and acetylene are designed to gouge out metal to the right
dimensions when removing faulty welding. They are bent on an angle
for ease of use in horizontal positions.
| Product Code | Description |

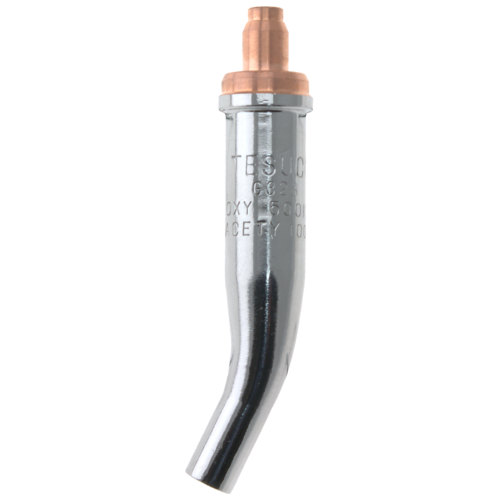

| GWGNA32 |
Gouging Nozzle
Oxygen Acetylene
Size 32 Bent
|

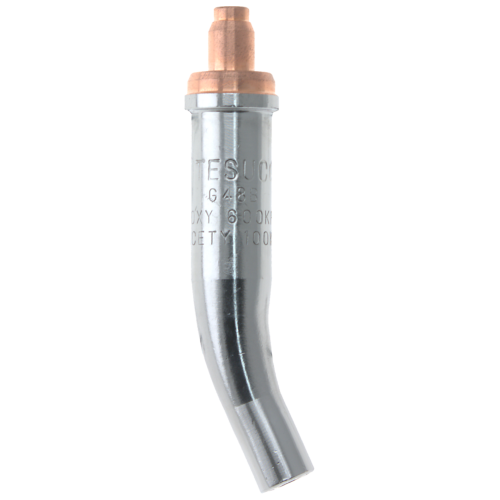

| GWGNA48 |
Gouging Nozzle
Oxygen Acetylene
Size 48 Bent
|

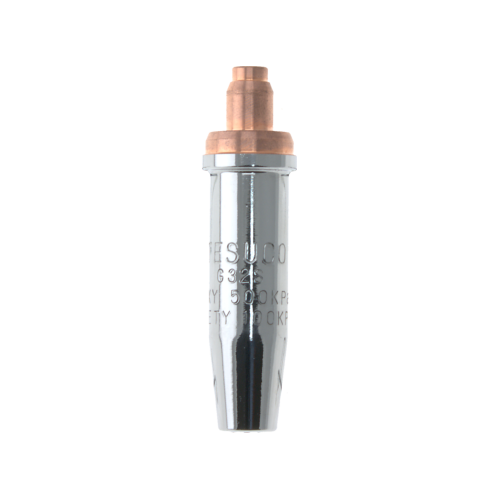

Gouging Nozzles Straight Oxygen / Acetylene - Type 41
|
Gallery
|
As with other gouging nozzles, this
straight type is designed to gouge out metal to the right
dimensions when removing faulty welding, in a vertical position.
This model is for use with oxygen and acetylene.
| Product Code | Description |
| GWGNA32S |
Gouging Nozzle
Oxygen Acetylene
Size 32 Straight
|
Cutting Nozzles Oxygen / LPG - Type 44
|
Gallery
|
Oxygen and LPG cutting nozzles perform
extremely well for certain applications. Due to less carbon in LPG,
there is less slag adherence to the bottom of the cut. Nozzles are
marked according to the requirements in AS 4839.
| Product Code | Description |

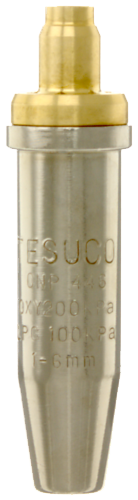

| GWCNL06 |
Cutting Nozzle Size 6
Oxy / LPG Style 44
Cuts 0 - 6 mm
|

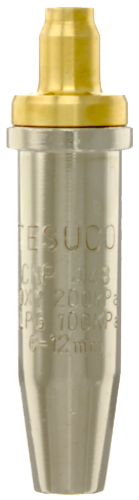

| GWCNL08 |
Cutting Nozzle Size 8
Oxy / LPG Style 44
Cuts 0 - 12 mm
|

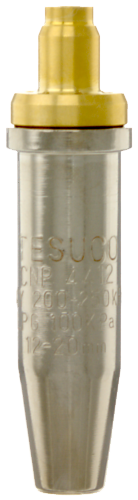

| GWCNL12 |
Cutting Nozzle Size 12
Oxy / LPG Style 44
Cuts 0 - 20 mm
|

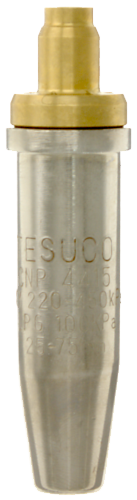

| GWCNL15 |
Cutting Nozzle Size 15
Oxy / LPG Style 44
Cuts 0 - 75 mm
|

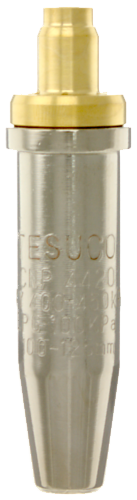

| GWCNL20 |
Cutting Nozzle Size 20
Oxy / LPG Style 44
Cuts 0 - 125 mm
|

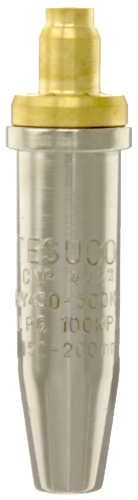

| GWCNL24 |
Cutting Nozzle Size 24
Oxy / LPG Style 44
Cuts 0 - 200 mm
|

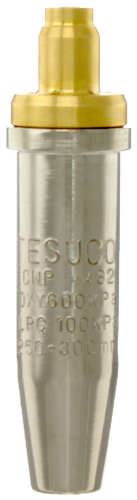

| GWCNL32 |
Cutting Nozzle Size 32
Oxy / LPG Style 44
Cuts 0 - 300 mm
|
Gouging Nozzles Bent Oxygen / LPG - Type 44
|
Gallery
|
Gouging nozzles for use with oxygen
and LPG are designed to gouge out metal to the right size when
removing faulty welding. They are bent on an angle for ease of use
in horizontal positions.
| Product Code | Description |

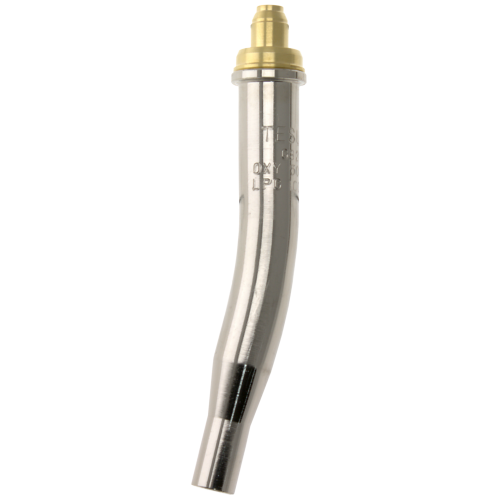

| GWGNL32 |
Gouging Nozzle
Oxygen LpG
Size 32 Bent
|

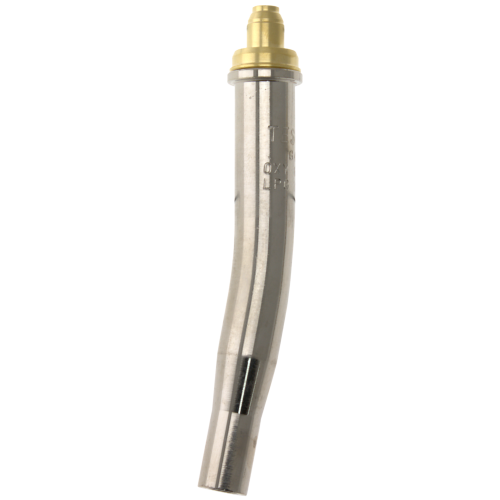

| GWGNL48 |
Gouging Nozzle
Oxygen LpG
Size 48 Bent
|
Gouging Nozzles Straight Oxygen / LPG - Type 44
|
Gallery
|
As with other gouging nozzles, this
straight type is designed to gouge out metal to the right
dimensions when removing faulty welding, in a vertical position.
This model is for use with oxygen and LPG.
| Product Code | Description |

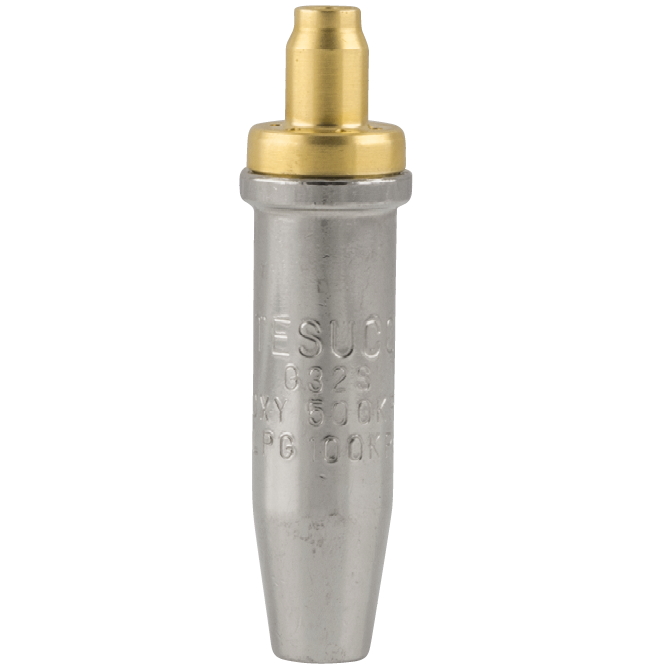

| GWGNL32S |
Gouging Nozzle
Oxygen LpG
Size 32 Straight
|
