All cylinders must be protected from being knocked over, falling and/or impact damage to comply with AS4332-2004. This is regardless of whether the cylinder is full or empty and regardless of whether the cylinder is in or out of operation. The Tesuco range is designed for a number of applications.

	Product Code	Description

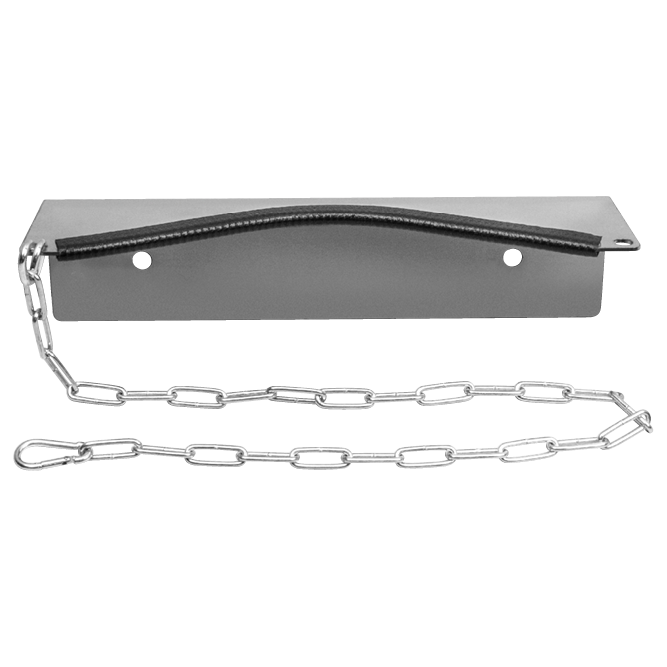

	ACB	Cylinder Bracket Wall Mount Stainless Steel

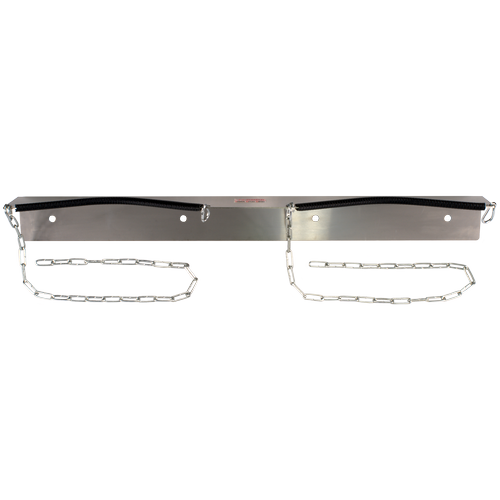

	ACB2	Twin Cylinder Bracket Wall Mount Stainless Steel
	ACB510	Twin Cylinder Bracket Wall Mount Stainless Steel Width: 510mm

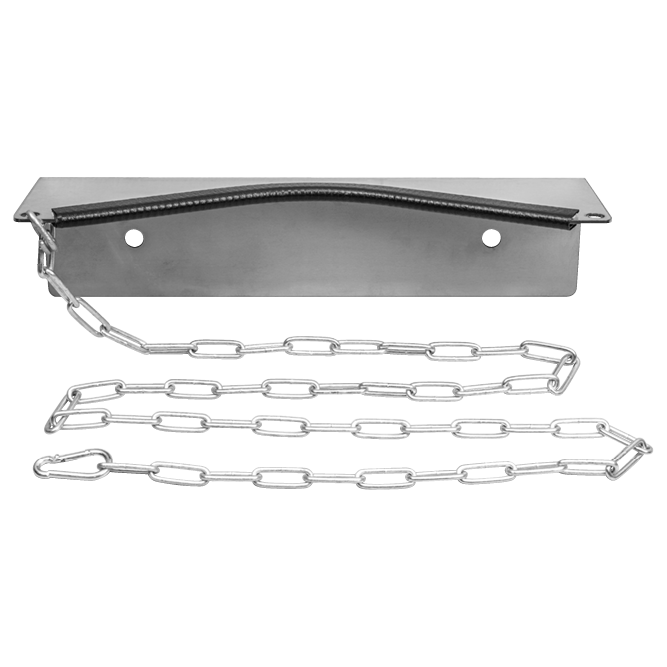

	ACBL	Cylinder Bracket Wall Mount Stainless Steel For LPG Cylinders

Gas Heaters are used with industrial gases, particularly CO2 and CO2 mixtures on the high pressure side of the manifold to warm the gas prior to the regulator, improving the flow rate through the regulator and preventing the gas from freezing.

	Product Code	Description

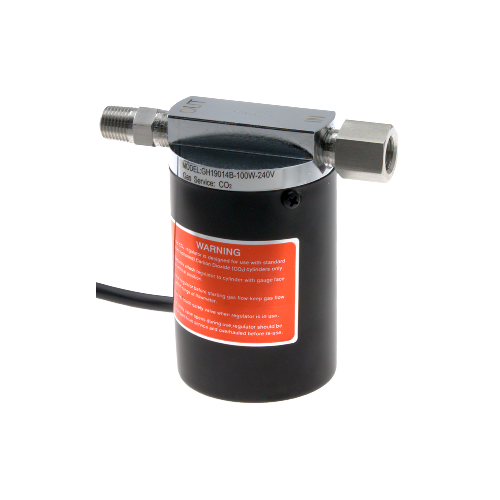

	GH19014B	Gas Heater for CO2 Gas Beer Boards In:1/4 BSPT FM / Out:1/4BSPT M
	GH19030	Gas Heater for Welding Gas, Type 30 Nut & Stem Inlet / T30 Male Outlet

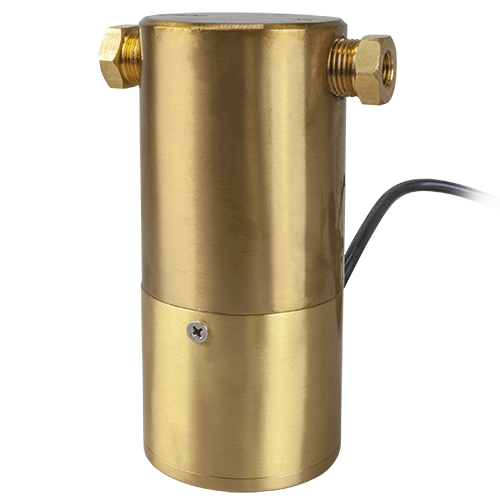

	GH900	Gas Pre Heater 900W / 220v In:1/4" NPT FM/Out:1/4"NPT FM

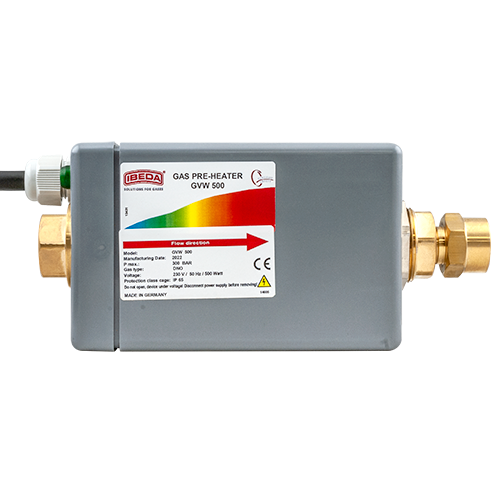

	GVW500-INOX	Gas Pre Heater 500w Oxygen / Inert Gas, 1/4"NPT-F MWP: 300Bar 230V / 50Hz

Gas Filters are used with industrial gases on pipeline installations. They are located on the high pressure side of the regulator on a cylinder manifold system and it is used where pressure regulators and line fittings must be protected from contamination. They can also be used on bulk liquid vessel installations, as the flow rate is high even at relatively low pressure. It is a requirement of the medical oxygen standard, that high pressure filters are fitted.

	Product Code	Description

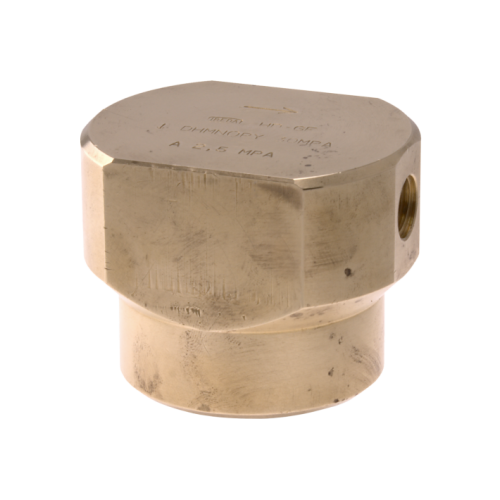

	0041-0101	Body fr HG Filter 300Bar

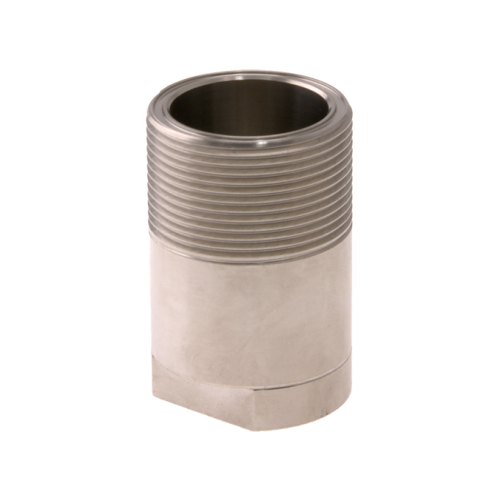

	0077-0221	Housing for HG Filter 300Bar

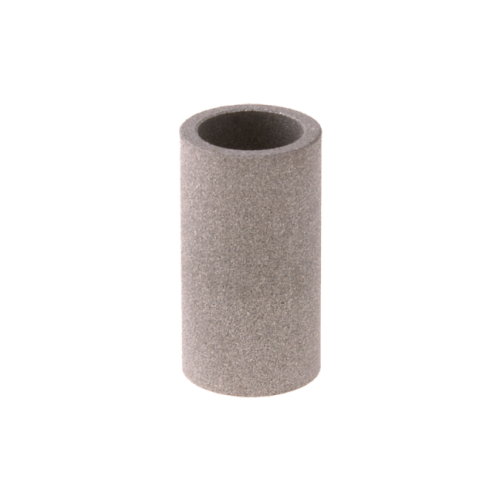

	0183-0025	Replacement HG Filters 15 Micron

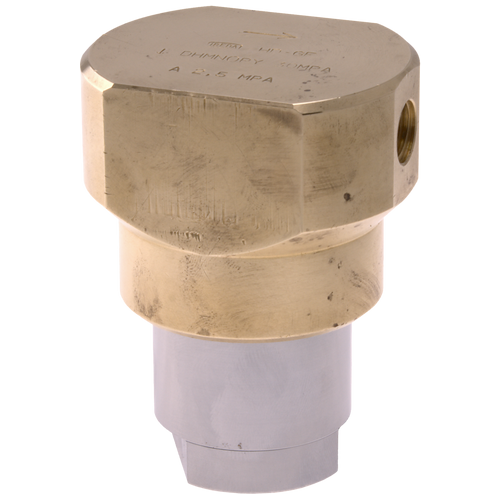

	0473-0098	In line HG Filter 300Bar

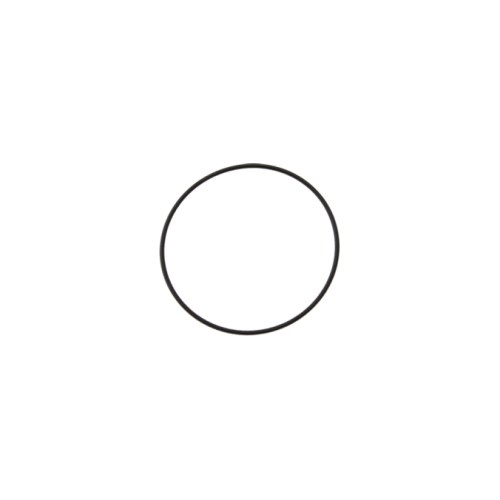

	7440-0360	O Ring fr HG Filter 300Bar

Tesuco Safety Relief Valves (SRV) have been specifically designed to meet the requirements in Australian Standards.
The requirements in AS 1271, AS 4289 and AS 5034 have all been met for protecting low pressure equipment from excess pressure.
There are a number of units designed to operate at various pressures as listed below to protect pipework and downstream equipment.
Other models are available upon request. All of our ARV models are manufactured in Australia.

	Product Code	Description
	ARV1.9	Safety Relief Valve Inert/Fuel 190kPa In:1/4NPT Out:1/2NPT
	ARV13	Safety Relief Valve Oxygen 1300kPa In:1/4NPT Out:1/2NPT Cleaned for Oxygen Use
	ARV13IF	Safety Relief Valve Inert/Fuel 1300kPa In:1/4NPT Out:1/2NPT
	ARV26	Safety Relief Valve Inert/Fuel 2600kPa In:1/4NPT Out:1/2NPT
	ARV3	Safety Relief Valve Inert/Fuel 300kPa In:1/4NPT Out:1/2NPT
	ARV6	Safety Relief Valve Inert/Fuel 600kPa In:1/4NPT Out:1/2NPT
	ARV8	Safety Relief Valve Inert/Fuel 800kPa In:1/4NPT Out:1/2NPT

Tesuco provides a range of high and low pressure isolation valves for use on manifold and pipeline systems. This allows for flexibility in design of the piping system, All valves are suitable for the indicated gas service and ball valves are colour coded.

	Product Code	Description

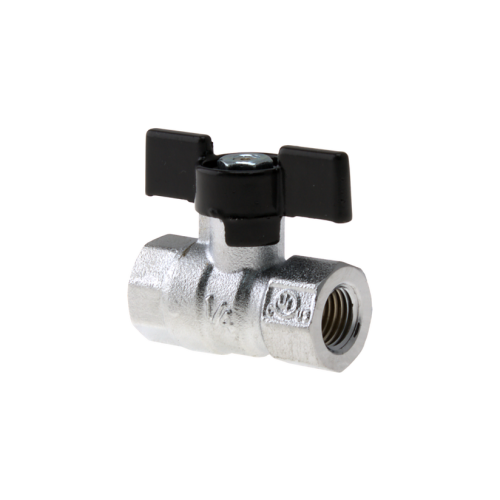

	T-VA00706	Ball Valve 1/4NPT Oxygen Black handle

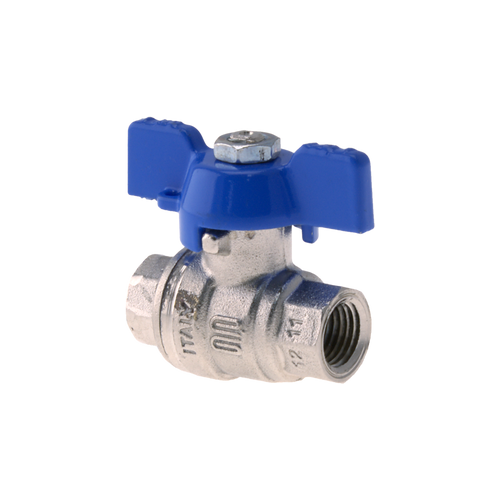

	T-VA00707	Ball Valve 1/4NPT Inert Gas Blue handle

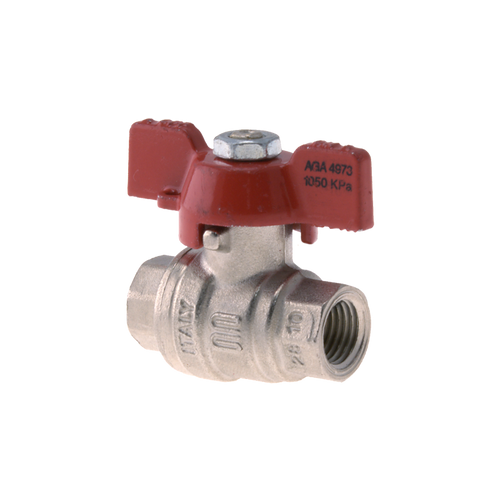

	T-VA00708	Ball Valve 1/4NPT Fuel Gas Red handle

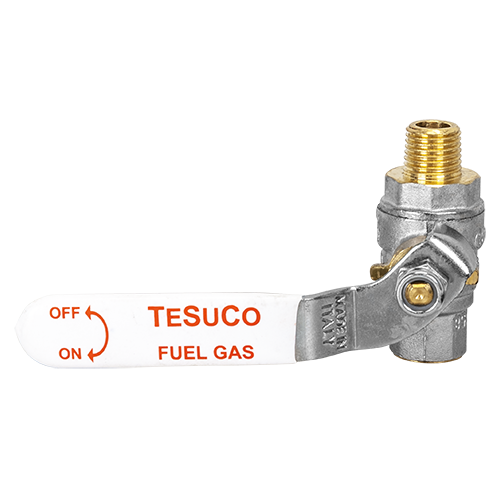

	W-SB125FG	Ball Valve Fuel Gas 1/4BSPT M to 1/4 BSPT F Red

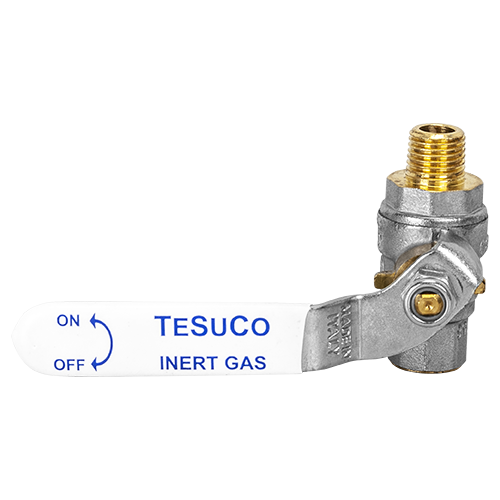

	W-SB125IG	Ball Valve Inert Gas 1/4BSPT M to 1/4 BSPT F Blue

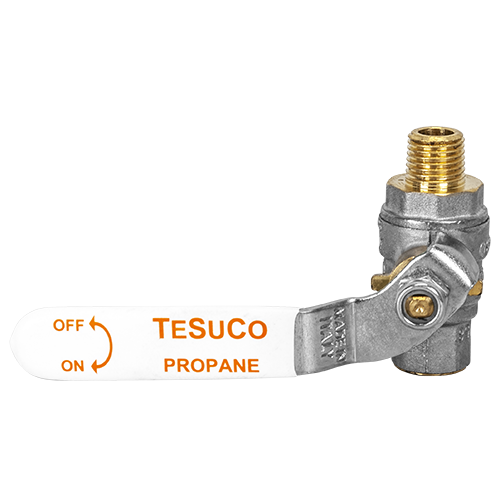

	W-SB125LP	Ball Valve Propane 1/4BSPT M to 1/4 BSPT F Orange

When manifold inlet connections or unregulated outlet points are not in use, it is good practice to seal them with blanking plugs. This can save gas leakage, keep dust and other particles out and act as a safety device where there is a high pressure connection.

	Product Code	Description

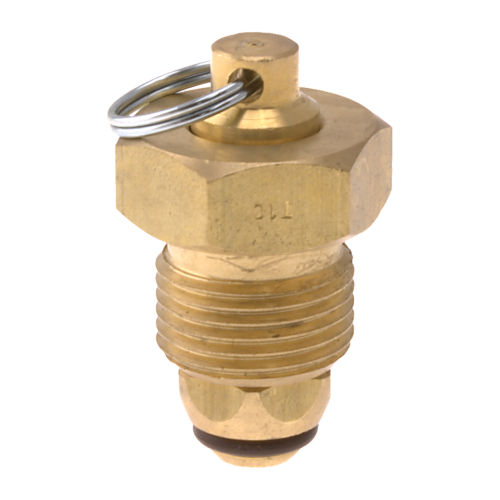

	G-ADPVBP10	Blanking Plug Brass Type 10

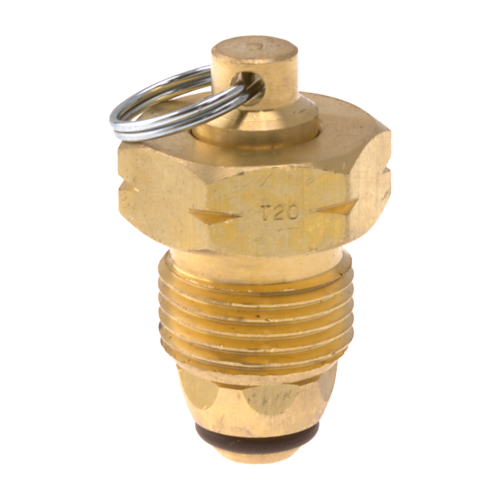

	G-ADPVBP20	Blanking Plug Brass Type 20

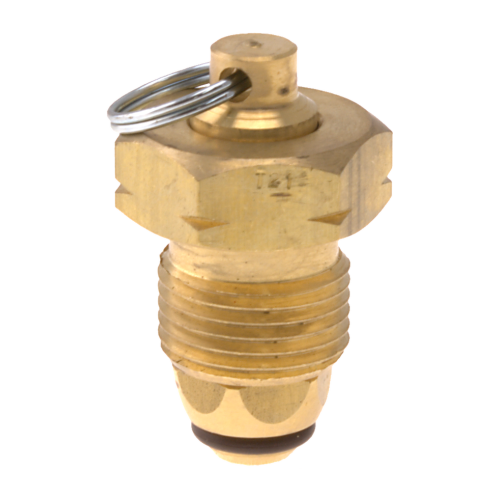

	G-ADPVBP21	Blanking Plug Brass Type 21

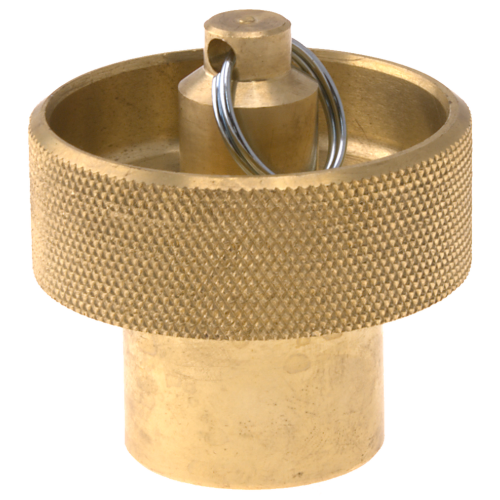

	G-ADPVBP50W	Blanking Plug Brass Type 50 Handwheel

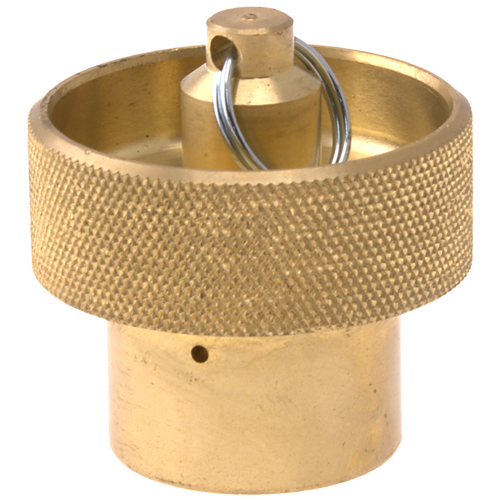

	G-ADPVBP60W	Blanking Plug Brass Type 60 Handwheel

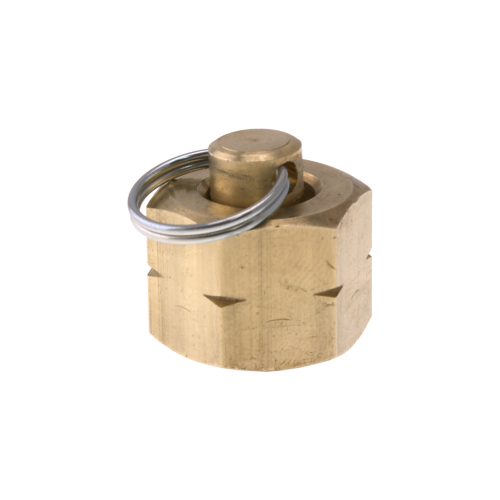

	W-PLUG38-L/H	Blanking Plug L/H 3/8

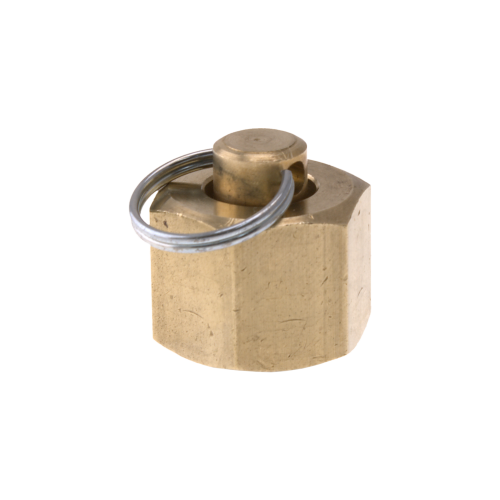

	W-PLUG38-R/H	Blanking Plug R/H 3/8

As many standards call for the correct labelling of gas systems, Tesuco have a range of pre-printed labels and in-house engraved signs to meet these requirements.  All of the labels are made from UV resistant materials that will give a minimum service life of five years both indoors and outdoors.

	Product Code	Description

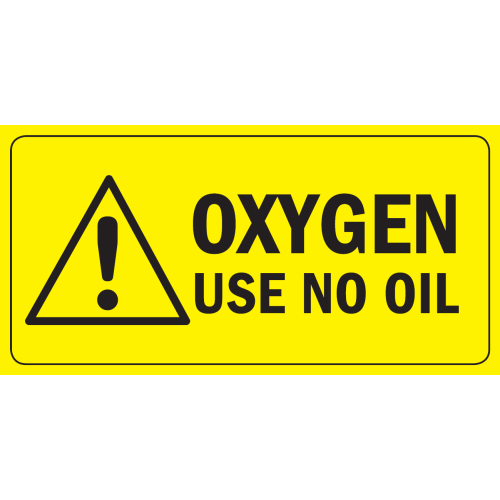

	W-MANLAB-01	Label Oxygen For Outlet Point
	W-MANLAB-02	Label Oxygen For Manifold
	W-MANLAB-03	Label Acetylene For Manifold & Outlets

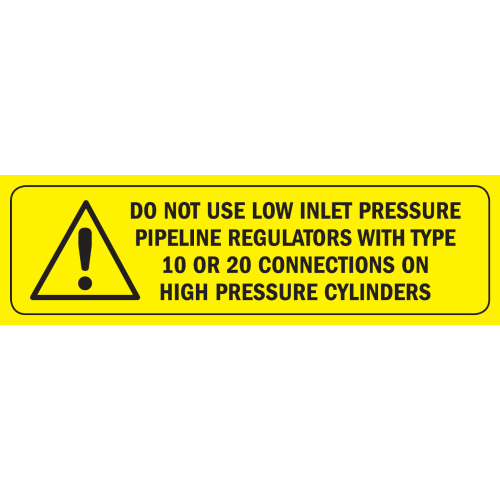

	W-MANLAB-04	Label Pipeline Low Pressure Warning

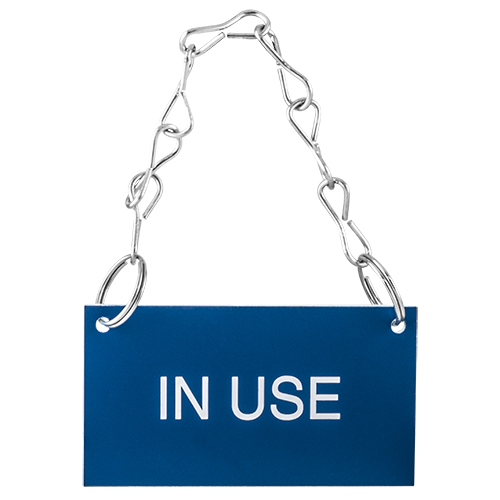

	W-MANLAB-05	Sign "IN USE" With Chain 10 yr outdoor life
	W-MANLAB-06	Sign "RESERVE" With Chain 10 yr outdoor life
	W-MANLAB-07	Label LpG For Manifold & Outlets
	W-MANLABTR	Sign "RESERVE" Tesuco With Chain 10 yr outdoor life

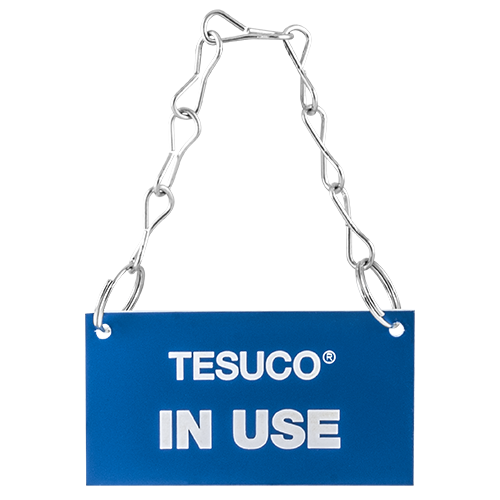

	W-MANLABTU	Sign "IN USE" Tesuco With Chain 10 yr outdoor life
