Two stage regulators give a constant, precise outlet pressure, no matter what changes occur in the supply pressure. This side entry dual stage regulator has a two stage piston design for high inlet, high outlet pressure and provides a high gas flow. It is designed to deliver this high outlet pressure in an extremely stable way, making it ideal for laser applications. The body and first stage is made completely from fully machined brass bar stock and is extremely rugged and reliable. It comes in a number of different configurations for different gas services. The regulator is colour coded and marked as required in the standard AS4267.

	Product Code	Description

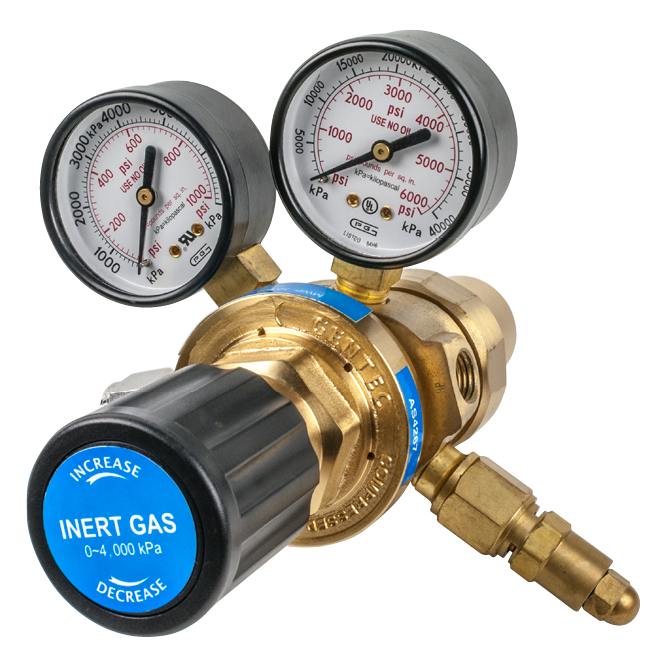

	RG2S40	Regulator 2 Stage Side Entry Inert Gas 1/4 NPT In 30,000kPa Out 4,000kPa

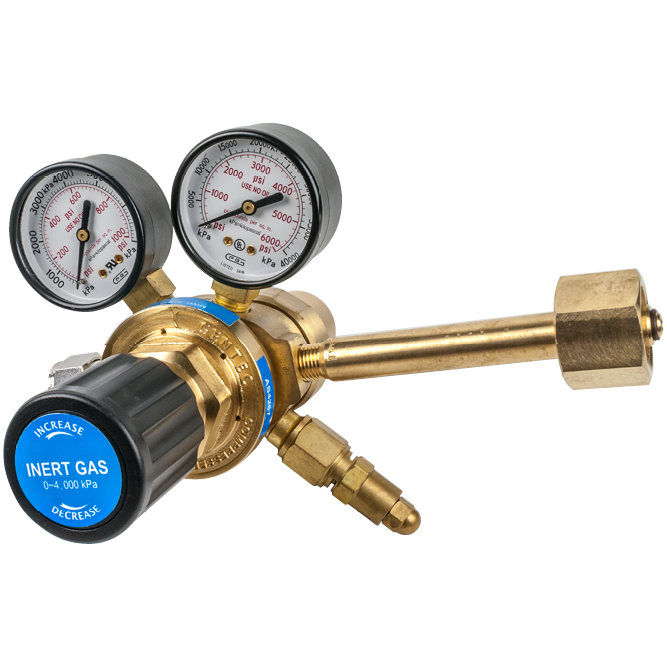

	RG2SAI40	Regulator 2 Stage Side Entry Air Type 60 In 30,000kPa Out 4,000kPa
	RG2SCD40	Regulator 2 Stage Side Entry CO2 Type 30 In 30,000kPa Out 4,000kPa
	RG2SIG40	Regulator 2 Stage Side Entry Inert Gas Type 10 In 30,000kPa Out 4,000kPa
	RG2SNI40	Regulator 2 Stage Side Entry Nitrogen Type 50 In 30,000kPa Out 4,000kPa
	RG2SNI4051	Regulator 2 Stage Side Entry Nitrogen Type 51 In 30,000kPa Out 4,000kPa

This professional piston style regulator is designed for high outlet pressure with high flow. It has a rugged brass construction with large easy to read dual scale kPa / psi) pressure gauges with gauge protectors fitted. The regulator is colour coded and engraved or labelled with all the requirements of the standard AS4267. This regulator has been designed specifically for the air conditioning and refrigeration industries.

Following is the list of super high flow regulators available from Tesuco.

	Product Code	Description

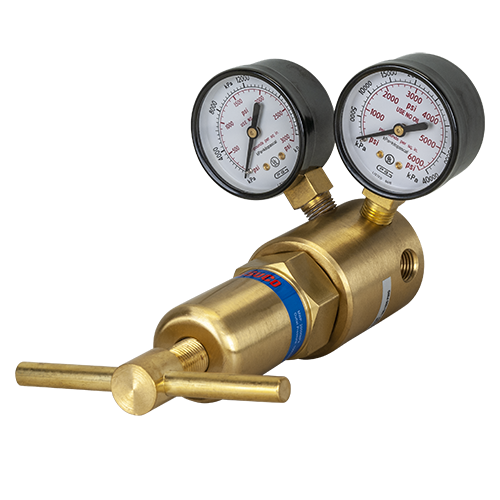

	RG1S100	Regulator 1 Stage Side Entry Inert Gas 1/4 NPT In 40,000kPa Out 10,000kPa

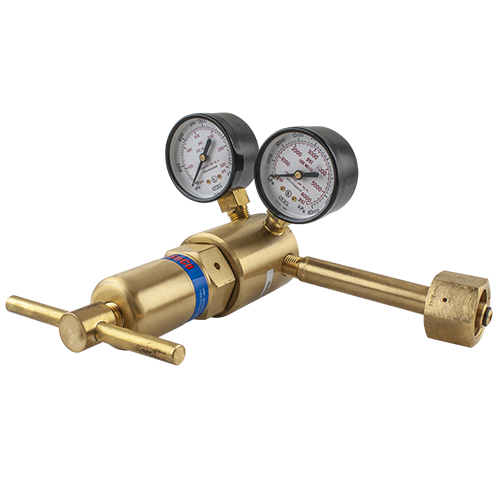

	RG1SAI100	Regulator 1 Stage Side Entry Air Type 60 In 30,000kPa Out 10,000kPa
	RG1SCD100	Regulator 1 Stage Side Entry CO2 Type 30 In 30,000kPa Out 10,000kPa

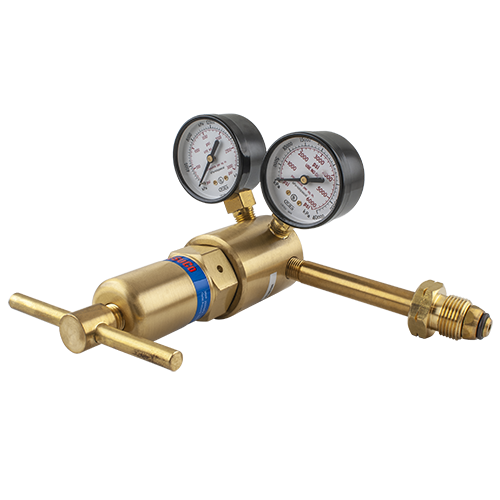

	RG1SHY100	Regulator 1 Stage Side Entry Hydrogen Type 20 In 20,000kPa Out 10,000kPa

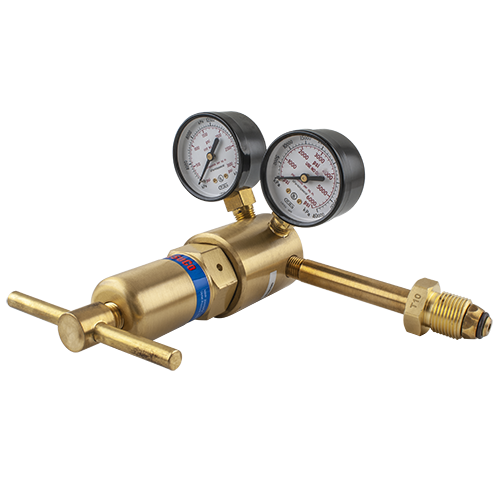

	RG1SIG100	Regulator 1 Stage Side Entry Inert Gas Type 10 In 30,000kPa Out 10,000kPa
	RG1SNI100	Regulator 1 Stage Side Entry Nitrogen Type 50, 1/4" NPT In 40,000kPa Out 10,000kPa
	RG1SNI10051	Regulator 1 Stage Side Entry Nitrogen Type 51, 1/4"NPT FM In 40,000kPa Out 10,000kPa
	RG1SOX100	Regulator 1 Stage Side Entry Oxygen Type 10 In 20,000kPa Out 10,000kPa

	Product Code	Description
	RG1S200	Regulator 1 Stage Side Entry Inert Gas 1/4 NPT In 40,000kPa Out 20,000kPa

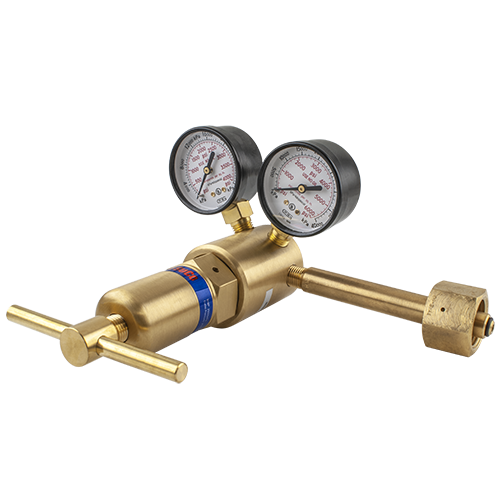

	RG1SAI200	Regulator 1 Stage Side Entry Air Type 60 In 30,000kPa Out 20,000kPa
	RG1SAI20061	Regulator 1 Stage Side Entry Air Type 61 In 30,000kPa Out 20,000kPa
	RG1SHY200	Regulator 1 Stage Side Entry Hydrogen Type 20 In 30,000kPa Out 20,000kPa
	RG1SIG200	Regulator 1 Stage Side Entry Inert Gas Type 10 In 30,000kPa Out 20,000kPa

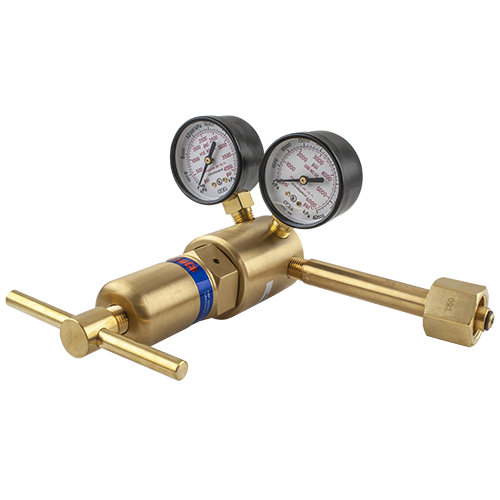

	RG1SNI200	Regulator 1 Stage Side Entry Nitrogen Type 50, 1/4NPT FM In 40,000kPa Out 20,000kPa

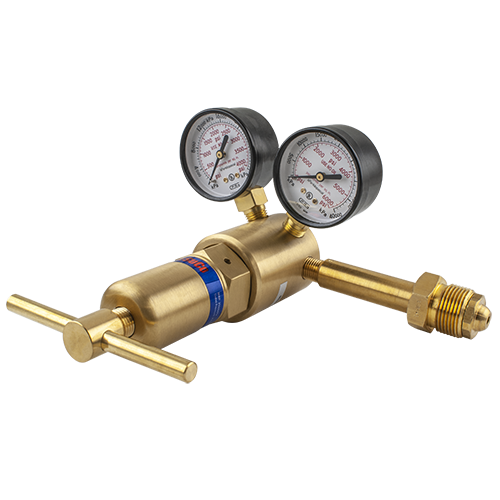

	RG1SNI20051	Regulator 1 Stage Side Entry Nitrogen Type 51, 1/4NPT FM In 40,000kPa Out 20,000kPa

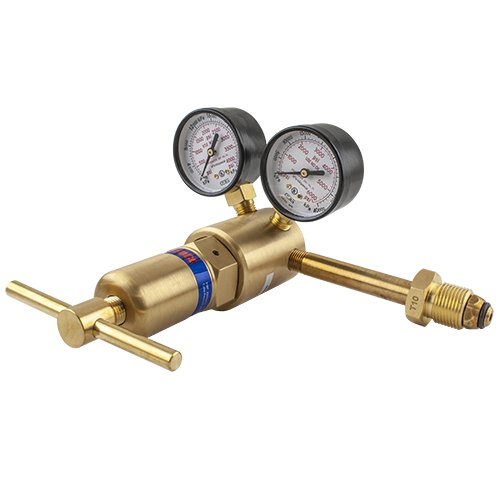

	RG1SOX200	Regulator 1 Stage Side Entry Oxygen Type 10 In 20,000kPa Out 20,000kPa

	Product Code	Description

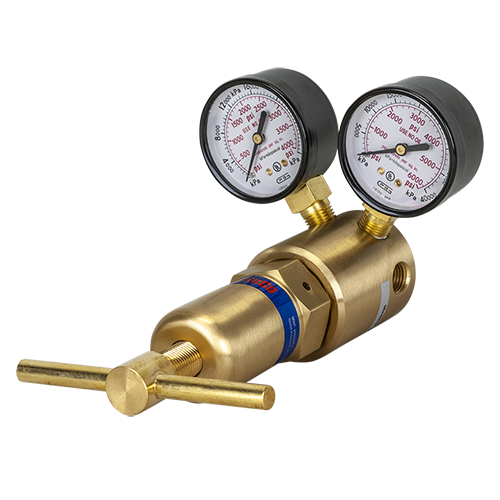

	RG1S300	Regulator 1 Stage Side Entry Inert Gas 1/4 NPT In 40,000kPa Out 30,000kPa

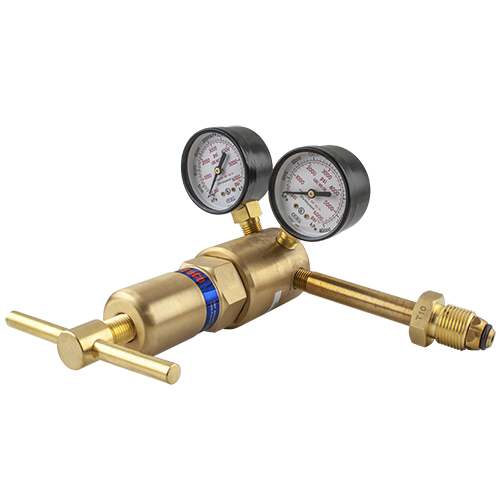

	RG1SIG300	Regulator 1 Stage Side Entry Inert Gas, Type 10 In 40,000kPa Out 30,000kPa

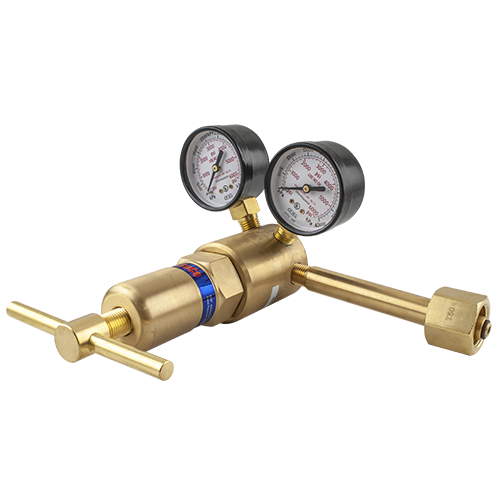

	RG1SNI300	Regulator 1 Stage Side Entry Nitrogen Type 50, 1/4NPT FM In 40,000kPa Out 30,000kPa

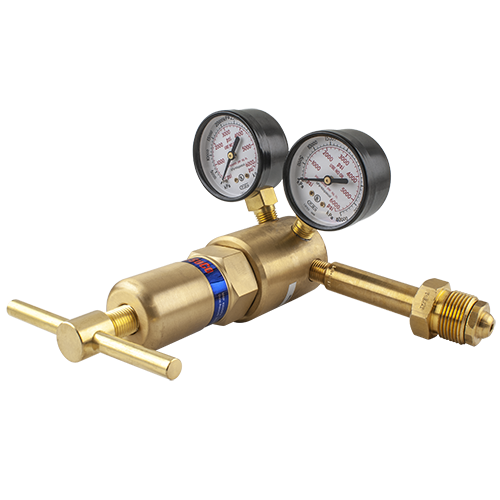

	RG1SNI30051	Regulator 1 Stage Side Entry Nitrogen Type 51, 1/4NPT FM In 40,000kPa Out 30,000kPa
