Non-regulated Outlet Points

Tesuco has a range of single, twin and triple outlet points for use with conventional style bottom entry outlet point regulators or special outlet point regulators that are rated for high inlet pressure as required in AS 4289.

Single

Low Pressure Systems

The single low pressure outlet points include a regulator mounting block, colour coded lever style isolation valve, 1/2" pipe compression fitting and warning label all mounted on a stainless steel bracket. They are available for maximum working pressures up to 4,200 kPa.

Product CodeDescriptionPrice
GOPAC Point Valve Single
Acetylene Type 20
1/2" Comp Fitting, 4,200 kPa
Login
GOPAI Point Valve Single
Air Type 60
1/2" Comp Fitting, 4,200 kPa
Login
GOPCD Point Valve Single
Carbon Dioxide Type 30
1/2" Comp Fitting, 4,200 kPa
Login
GOPFG Point Valve Single
Fuel Gas Type 20
1/2" Comp Fitting, 4,200 kPa
Login
GOPIG Point Valve Single
Inert Gas Type 10
1/2" Comp Fitting, 4,200 kPa
Login
GOPLP Point Valve Single
LPG Type 20
1/2" Comp Fitting, 4,200 kPa
Login
GOPNI Point Valve Single
Nitrogen Type 50
1/2" Comp Fitting, 4,200 kPa
Login
GOPOX Point Valve Single
Oxygen Type 10
1/2" Comp Fitting, 4,200 kPa
Login

High Pressure Systems

The single high pressure outlet points include a high pressure rated cylinder isolation valve, 1/2" solder pipe connection and warning label all mounted on a stainless steel bracket. They are available for maximum working pressures up to 20,000 kPa.

Product CodeDescriptionPrice
GOPACH Point Valve Single
Acetylene Type 20
1/2" Pipe Solder, 20,000 kPa
Login
GOPCDH Point Valve Single
Carbon Dioxide Type 30
1/2" Pipe Solder, 20,000 kPa
Login
GOPFGH Point Valve Single
Fuel Gas Type 20
1/2" Pipe Solder, 20,000 kPa
Login
GOPIGH Point Valve Single
Inert Gas Type 10
1/2" Pipe Solder, 20,000 kPa
Login
GOPLPH Point Valve Single
LPG Type 20
1/2" Pipe Solder, 20,000 kPa
Login
GOPOXH Point Valve Single
Oxygen Type 10
1/2" Pipe Solder, 20,000 kPa
Login

Twin

Low Pressure Systems

Gallery

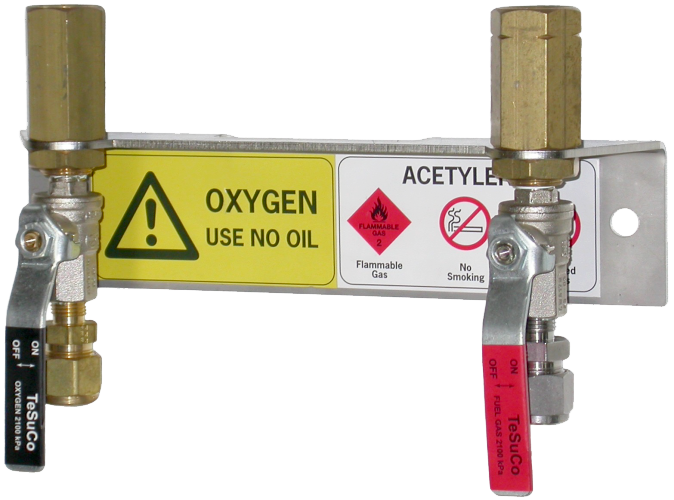

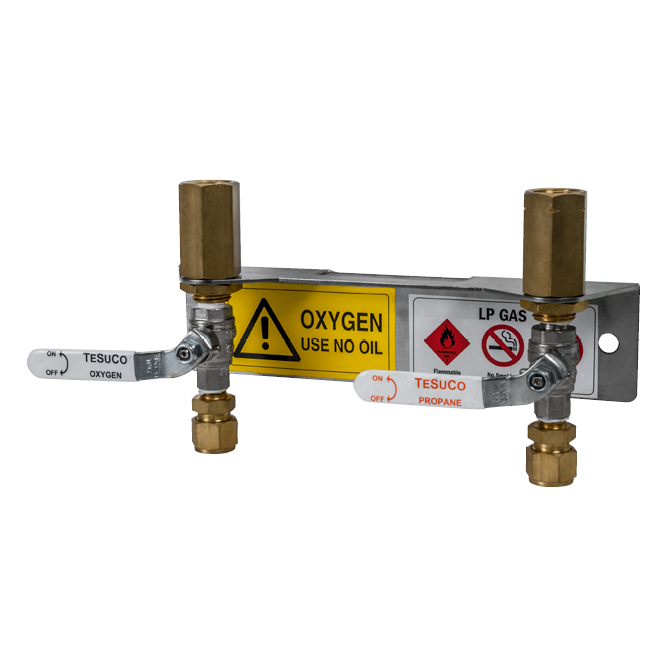

The twin low pressure outlet points provide a complete mounting system for either oxygen and acetylene or oxygen and LPG. They include regulator mounting blocks, colour coded lever style isolation valves, 1/2" pipe compression fittings and warning labels all mounted on a double stainless steel bracket. They are available for maximum working pressures up to 4,200 kPa.

Product CodeDescriptionPrice
GOPOA
GOPOA Point Valve Twin
Oxygen T10, Acetylene T20
1/2" Comp Fitting, 4,200 kPa
Login
GOPOL Point Valve Twin
Oxygen T10, LPG Type 20
1/2" Comp Fitting, 4,200 kPa
Login

High Pressure Systems

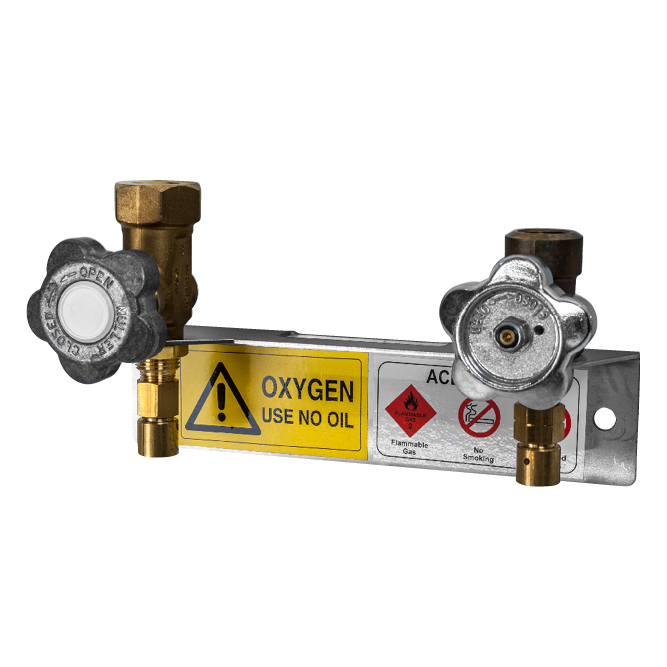

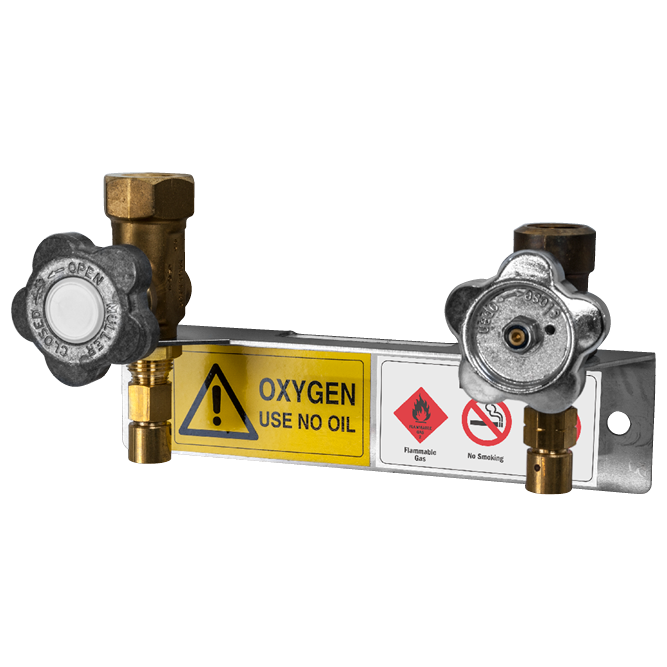

The twin high pressure outlet points provide a complete mounting system for either oxygen and acetylene or oxygen and LPG. They include a high pressure rated cylinder isolation valve, 1/2" solder pipe connection and warning label all mounted on a double stainless steel bracket. They are available for maximum working pressures up to 20,000 kPa.

Product CodeDescriptionPrice
GOPOAH Point Valve Twin
Oxygen T10, Acetylene T20
1/2" Pipe Solder, 20,000 kPa
Login
GOPOLH Point Valve Twin
Oxygen T10, LPG Type 20
1/2" Pipe Solder, 20,000 kPa
Login

Triple

Low Pressure Systems

The triple low pressure outlet points provide a complete mounting system for either oxygen and acetylene or oxygen and LPG and allow for an inert gas regulator for welding or purging applications. They include regulator mounting blocks, colour coded lever style isolation valves, 1/2" pipe compression fittings and warning labels all mounted on a triple stainless steel bracket. They are available for maximum working pressures up to 4,200 kPa.

Product CodeDescriptionPrice
GOPOAI Point Valve Triple
Oxy T10, Acet T20, Inert T10
1/2" Comp Fitting, 4,200 kPa
Login
GOPOLI Point Valve Triple
Oxy T10, LPG T20, Inert T10
1/2" Comp Fitting, 4,200 kPa
Login

High Pressure Systems

The triple high pressure outlet points provide a complete mounting system for either oxygen and acetylene or oxygen and LPG and allow for an inert gas regulator for welding or purging applications. They include a high pressure rated cylinder isolation valve, 1/2" solder pipe connection and warning label all mounted on a double stainless steel bracket. They are available for maximum working pressures up to 20,000 kPa.

Product CodeDescriptionPrice
GOPOAIH Point Valve Triple
Oxy T10, Acet T20, Inert T10
1/2" Pipe Solder, 20,000 kPa
Login
GOPOLIH Point Valve Triple
Oxy T10, LPG T20, Inert T10
1/2" Pipe Solder, 20,000 kPa
Login
