High Pressure Connection Leads

DATA SHEET

The entire range of high pressure flexible and rigid connection leads distributed by Tesuco are manufactured to BS EN ISO 14113:2008 (Rubber and plastic hose assemblies for compressed or liquefied gases up to a maximum design pressure of 450 bar), under a strict BS EN ISO 9001 quality and design management system. All high pressure connection leads for the use of connecting to cylinders or packs are fitted with inlet connections as stipulated in AS2473.

800 mm Cylinder Connection Leads

Product CodeDescriptionPrice

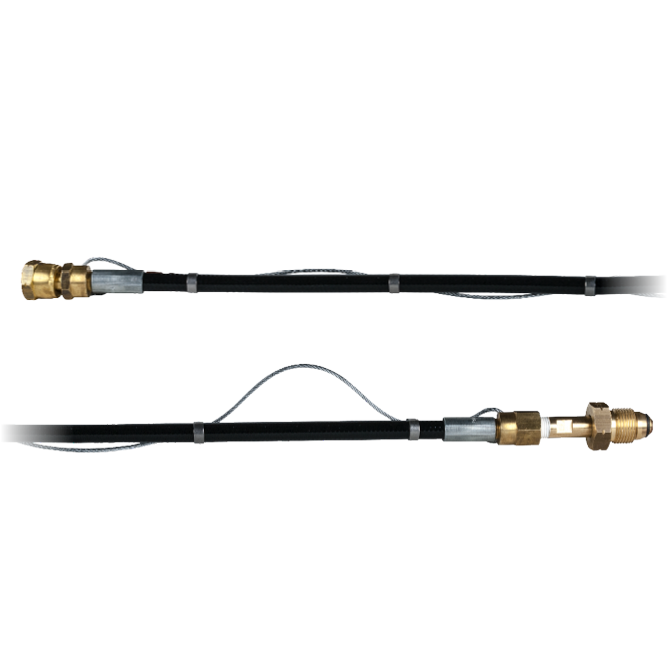

HAC08W Flexible Lead Acetylene 800 mm
Type 20 - 3/8BSP LH 2500kPa
Anti detonation Anti whip
Login

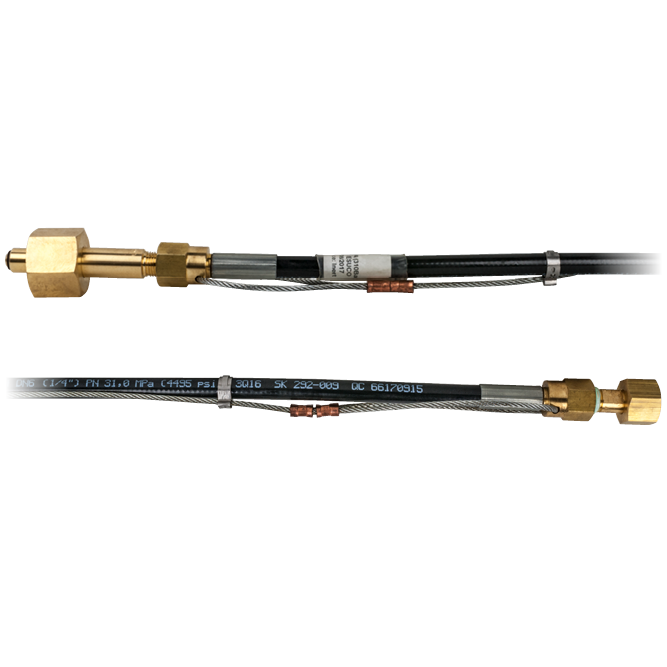

HAI08W Flexible Lead Air 800 mm
Type 60 - 3/8BSP RH 30,000kPa
Anti Whip
Login

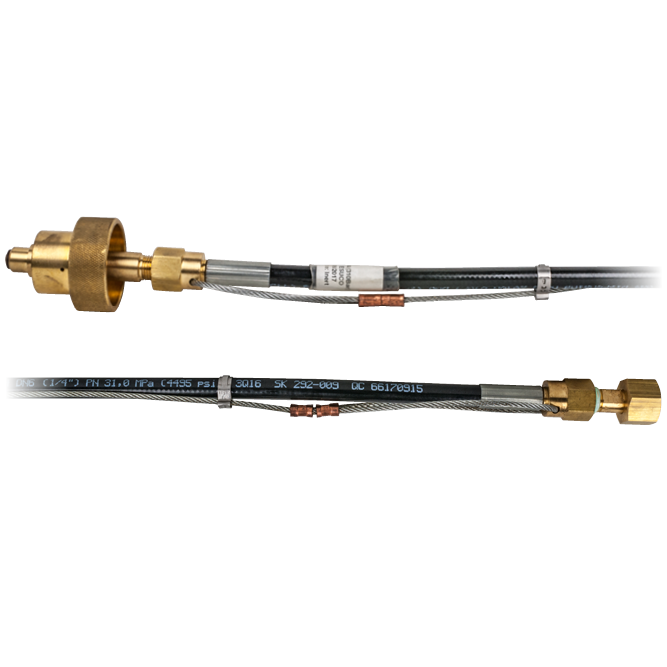

HAI08WH Flexible Lead Air 800 mm
Type 60 - RH 30,000kPa
Anti Whip H/Wheel
Login

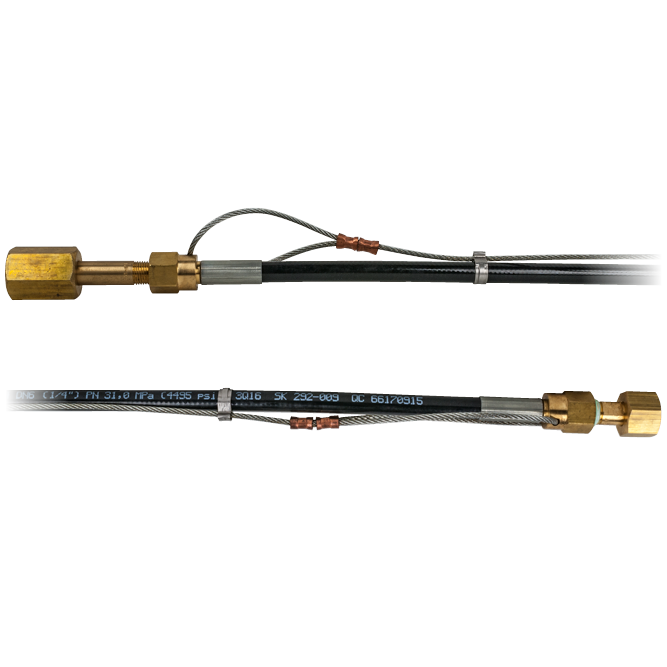

HAI08WP Flexible Lead Air 800 mm
Type 61 - 3/8BSP RH 30,000kPa
Anti Whip
Login

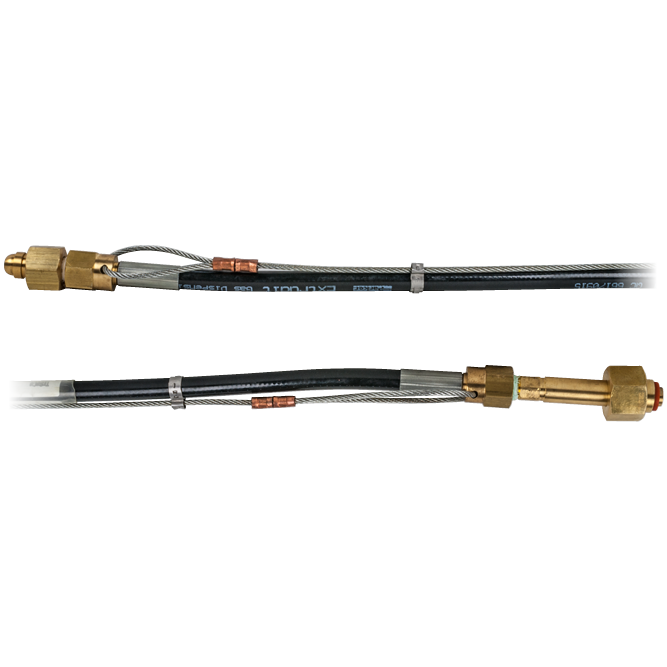

HCD08W Flexible Lead CO2 800 mm
Type 30 - 3/8BSP RH 30,000kPa
Anti Whip
Login

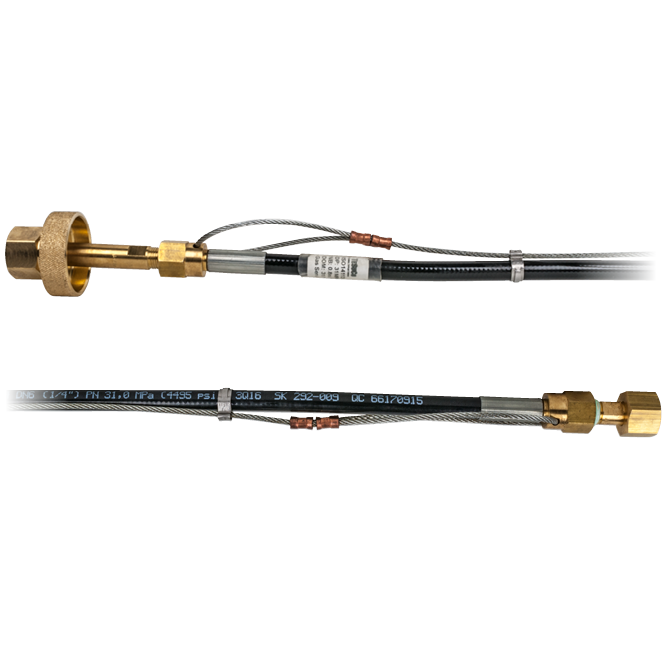

HCD08WH Flexible Lead CO2 800 mm
Type 30 - 3/8BSP RH 30,000kPa
Anti Whip H/Wheel
Login
HHY08W Flexible Lead Hydrogen 800 mm
Type 20 - 3/8 BSP LH 30,000kPa
Anti Whip
Login

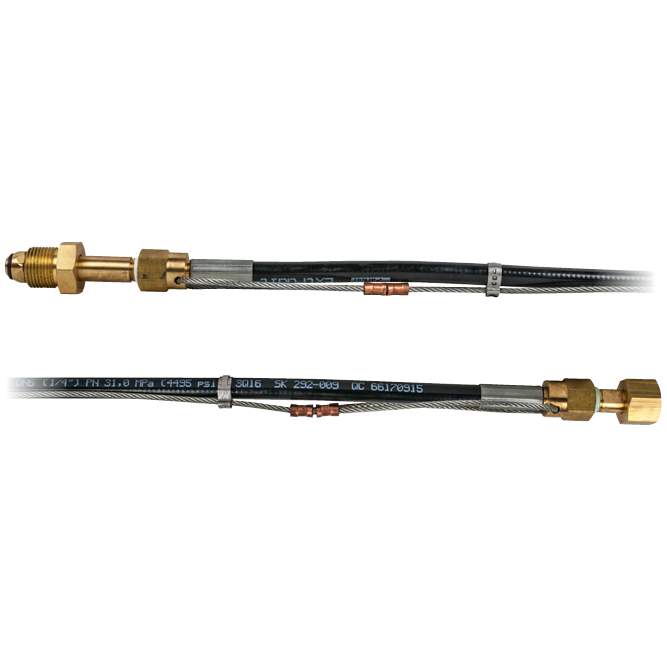

HIG08W Flexible Lead Inert Gas 800 mm
Type 10 - 3/8 BSP RH 30,000kPa
Anti Whip
Login
HLP08 Flexible Lead LpG 800 mm
Type 21 - 3/8 BSP LH 30,000kPa
Login

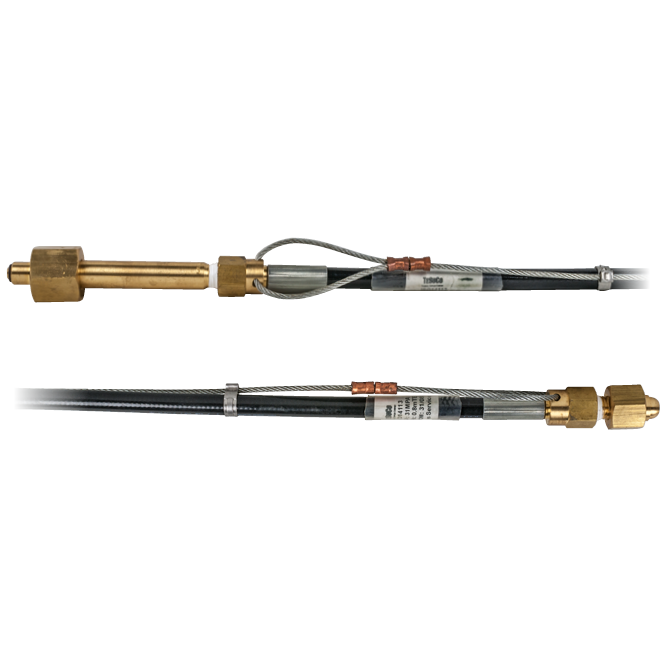

HNI08W Flexible Lead Nitrogen 800 mm
Type 50 - 3/8 BSP RH 30,000kPa
Anti Whip
Login

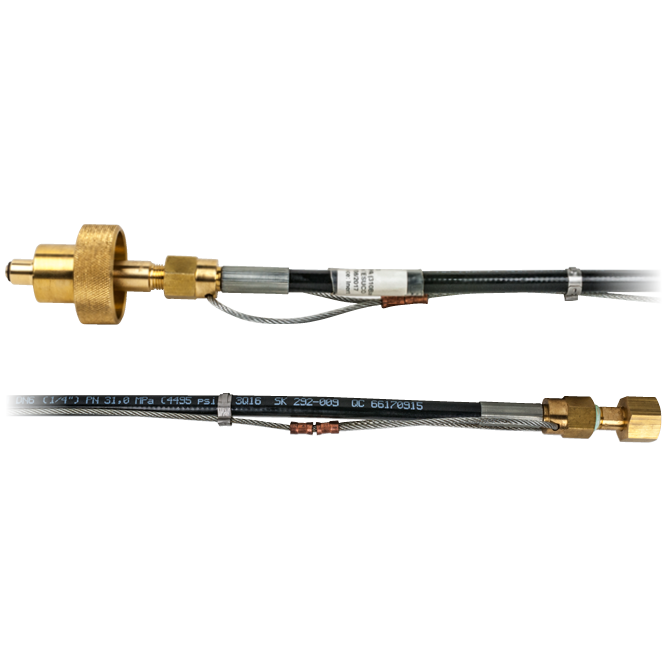

HNI08WH Flexible Lead Nitrogen 800 mm
Type 50 - 3/8 BSP RH 30,000kPa
Anti Whip H/Wheel
Login

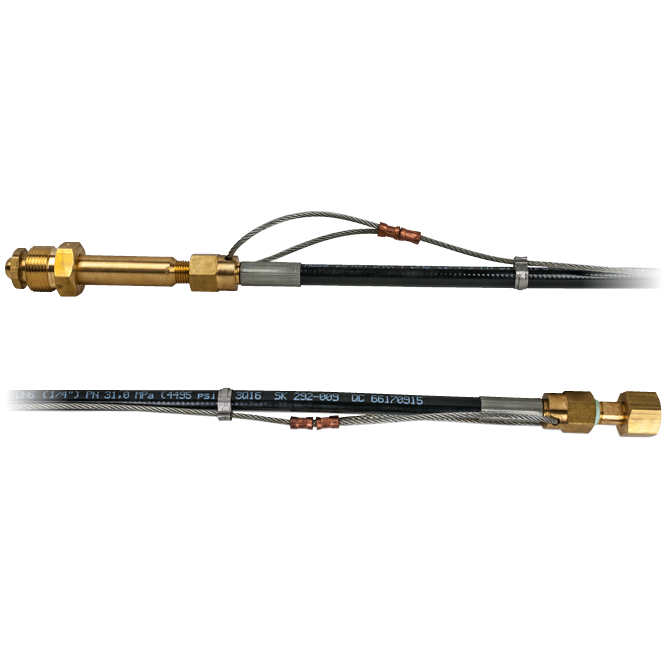

HNI08WP Flexible Lead Nitrogen 800 mm
Type 51 - 3/8 BSP RH 30,000kPa
Anti Whip
Login

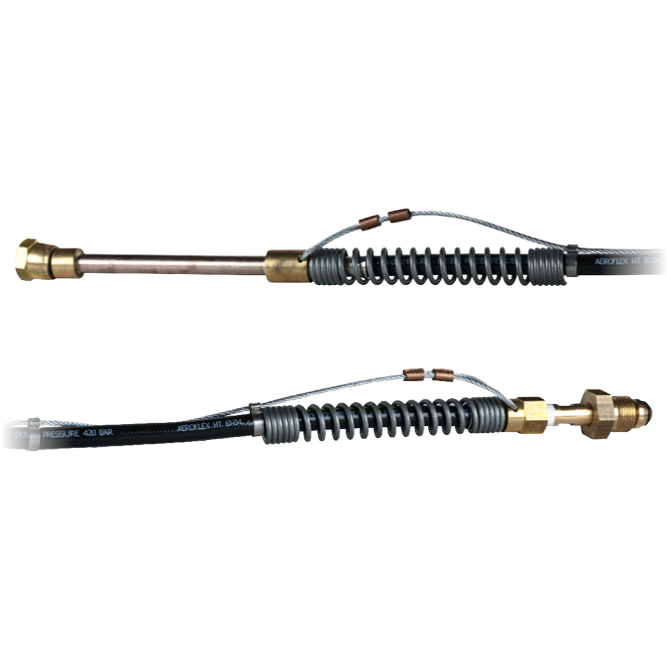

HOX08W Flexible Lead Oxygen 800 mm
Type 10 - 3/8 BSP RH 20,000kPa
Anti Whip
Login

800 mm Manifold Connection Leads

Product CodeDescriptionPrice
HAC08WM Flexible Lead Acetylene 800 mm
1/2" Flat RH M - 3/8 BSP LH FM
To Suit Manifolds / Rail
Login
HAI08WM Flexible Lead Air 800 mm
1/2" Flat RH M - 3/8 BSP RH FM
To Suit Manifolds / Rails
Login
HCD08WM Flexible Lead CO2 800 mm
1/2" Flat RH M - 3/8 BSP RH FM
To Suit Manifolds / Rails
Login
HHY08WM Flexible Lead Hydrogen 800 mm
1/2" Flat RH M - 3/8 BSP LH FM
To Suit Manifolds / Rails
Login
HIG08WM Flexible Lead Inert Gas 800 mm
1/2" Flat RH M - 3/8 BSP RH FM
To Suit Manifolds / Rail
Login
HLP08M Flexible Lead LPG 800 mm
1/2" Flat RH M - 3/8 BSP LH FM
To Suit Manifolds / Rails
Login
HNI08WM Flexible Lead Nitrogen 800 mm
1/2" Flat RH M - 3/8 BSP RH FM
To Suit Manifolds / Rails
Login
HOX08WM Flexible Lead Oxygen 800 mm
1/2" Flat RH M - 3/8 BSP RH FM
To Suit Manifolds / Rails
Login

1800 mm Cylinder Conncetion Leads

Product CodeDescriptionPrice
HAC18W Fleible Lead Acetylene 1800 mm
Type 20 - 3/8BSP LH 2500kPa
Anti detonation Anti whip
Login
HAI18W Flexible Lead Air 1800 mm
Type 60 - 3/8BSP RH 30,000kPa
Anti Whip
Login
HAI18WH Flexible Lead Air 1800 mm
Type 60 - 3/8BSP RH 30,000kPa
Anti Whip H/Wheel
Login
HAI18WP Flexible Lead Air 1800 mm
Type 61 - 3/8BSP RH 30,000kPa
Anti Whip
Login
HCD18 Flexible Lead CO2 1800 mm
Type 30 - 3/8 BSP RH 30,000kPa
Login
HCD18W Flexible Lead CO2 1800 mm
Type 30 - 3/8 BSP RH 30,000kPa
Anti Whip
Login
HCD18WH Flexible Lead CO2 1800 mm
Type 30 - 3/8 BSP RH 30,000kPa
Anti Whip H/Wheel
Login
HHY18W Flexible Lead Hydrogen 1800 mm
Type 20 - 3/8 BSP LH 30,000kPa
Anti Whip
Login
HIG18W Flexible Lead Inert Gas
1800 mm with Anti-Whip Cable
Type 10 - 3/8" BSP RH FM
Login
HLP18 Flexible Lead LpG 1800 mm
Type 21 - 3/8 BSP LH 30,000kPa
Login
HNI18W Flexible Lead Nitrogen 1800 mm
Type 50 - 3/8 BSP RH 30,000kPa
Anti Whip
Login
HNI18WH Flexible Lead Nitrogen 1800 mm
Type 50 - 3/8 BSP RH 30,000kPa
Anti Whip H/Wheel
Login
HNI18WP Flexible Lead Nitrogen 1800 mm
Type 51 - 3/8 BSP RH 30,000kPa
Anti Whip
Login
HOX18W Flexible Lead Oxygen 1800 mm
Type 10 - 3/8 BSP RH 20,000kPa
Anti Whip
Login

Special Lengths and Connection Fittings

Product CodeDescriptionPrice
HSP06 Flexible Lead Special 600 mm
To customer specification
Login
HSP08 Flexible Lead Special 800 mm
To customer specification
Login
HSP100 Flexible Lead Special
10,000 mm To Customer Specs
Login
HSP18 Flexible Lead Special 1800 mm
To customer specification
Login
HSP20 Flexible Lead Special 2000 mm
To customer specification
Login
HSP36 Flexible Lead Special 3600 mm
To customer specification
Login
HSP42 Flexible Lead Special 4200 mm
To customer specification
