It is often required to further regulate a gas supply at the
point of use, to ensure delicate machines are not damaged through
over pressurisation. The Gentec point of use panels
provides a convenient solution. They are suitable for
high purity gases up to 6.0 (99.9999%) purity and are available in
chrome plated brass or stainless steel. Models are
available for toxic and corrosive gases.

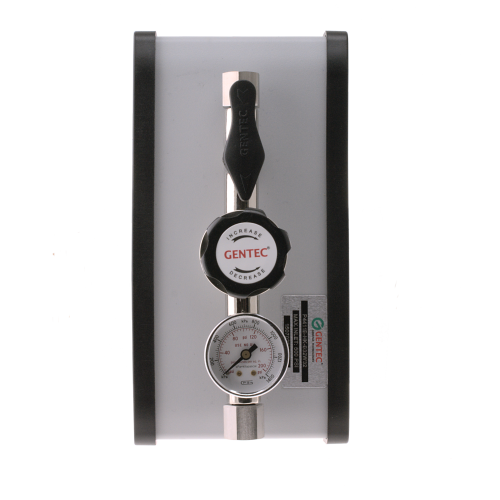

The following Single Outlet Panel provides final pressure
control at the point of use with a maximum inlet pressure of 4,000
kPa and adjustable outlet pressure up to 1,000 kPa. Constructed
from Chrome Plated Brass the Single Outlet Panel is recommended for
non-corrosive gases.
| Product Code | Description |
| GO1A60C4010 |
Gentec Single Outlet Panel
6.0 Purity Chrome Plated
In: 4,000kPa Out: 1,000kPa
|

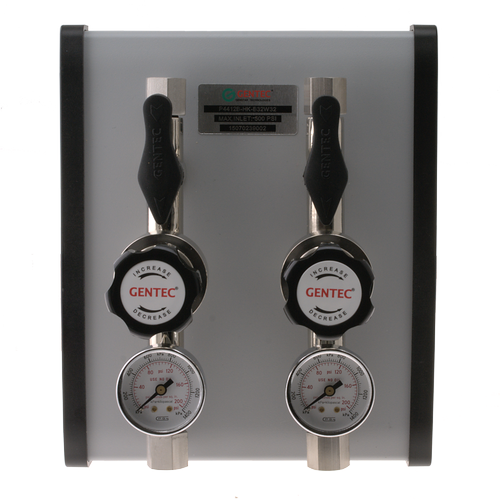

The following Twin Outlet Panel provides final pressure control
at the point of use for two gas supplies with a maximum inlet
pressure of 4,000 kPa and adjustable outlet pressure for each
supply up to 1,000 kPa. Constructed from Chrome Plated Brass the
Twin Outlet Panel is recommended for non-corrosive gases.
| Product Code | Description |
| GO2A60C4010 |
Gentec Twin Outlet Panel
6.0 Purity Chrome Plated
In: 4,000kPa Out: 1,000kPa
|

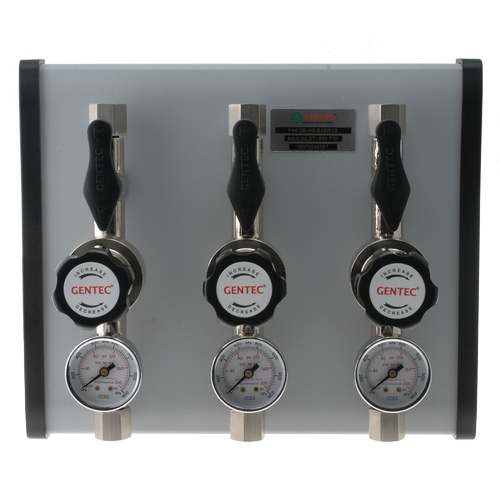

The following Triple Outlet Panel provides final pressure
control at the point of use for three gas supplies with a maximum
inlet pressure of 4,000 kPa and adjustable outlet pressure for each
supply up to 1,000 kPa. Constructed from Chrome Plated Brass the
Triple Outlet Panel is recommended for non-corrosive gases.
| Product Code | Description |
| GO3A60C4010 |
Gentec Triple Outlet Panel
6.0 Purity Chrome Plated
In: 4,000kPa Out: 1,000kPa
|

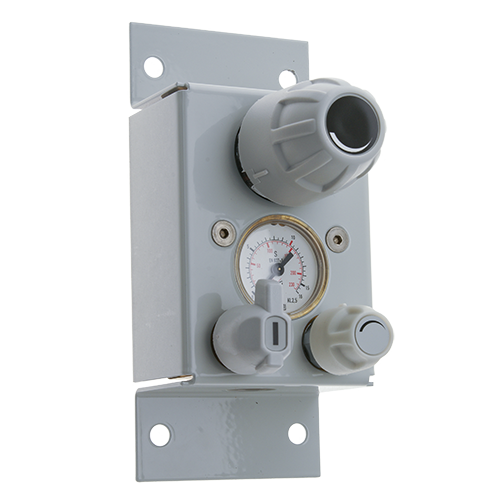

Detailed below is the DruVa range of wall mounted point of use
panels.
| Product Code | Description |
| DO3WC4010 |
Point of Use Panel Wall Mount
Chrome Plated
In: 4,000 kPa Out: 1,050 kPa
|
