Friday, September 19, 2014

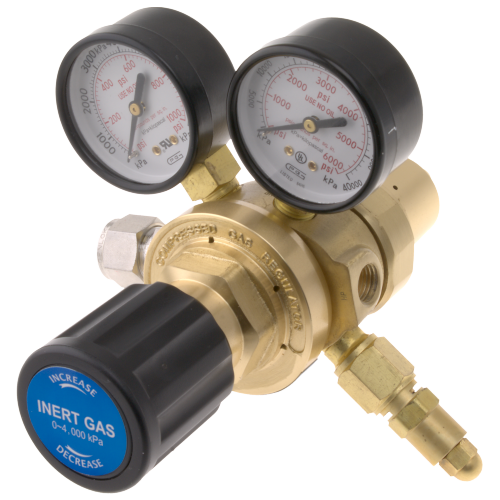

PRODUCT LAUNCH- Dual Stage, High Flow, High Pressure Regulator

Two stage regulators give a constant, precise outlet pressure, no matter what changes occur in the supply pressure system. This new side entry dual stage regulator has a two stage piston design for high inlet, high outlet pressure with a high gas flow. The high outlet pressure has a range of 0 - 4,000 kPa, with a flow rate of up to 100 m3/h. It will deliver this high outlet pressure in an extremely stable way, making it ideal for a variety of laser applications. The body and first stage of the regulator is made completely from fully machined brass bar stock and is extremely rugged and reliable. It comes in a number of different configurations for different gas services.





The regulator is colour coded and marked as required in the standard AS4267, but due to the high outlet pressure this regulator is "outside the scope" outlined in AS4267. These are in stock now and can be delivered to you normally within a 24 to 48 hour period. For further information, you may view our new brochure by following this link.

Mark Stadtmiller


william wong

22/10/2014 11:28:41 PM

looking for piston type brass chrome regulator with flw at 45nm3/hr 3500X700 psig 4 ported

Jonathan Sage (Tesuco)

27/10/2014 09:26:37 AM

Hi William. Thanks for your enquiry. I've passed your details on to our sales team and I will have them contact you directly.
